ORABOND® 1301

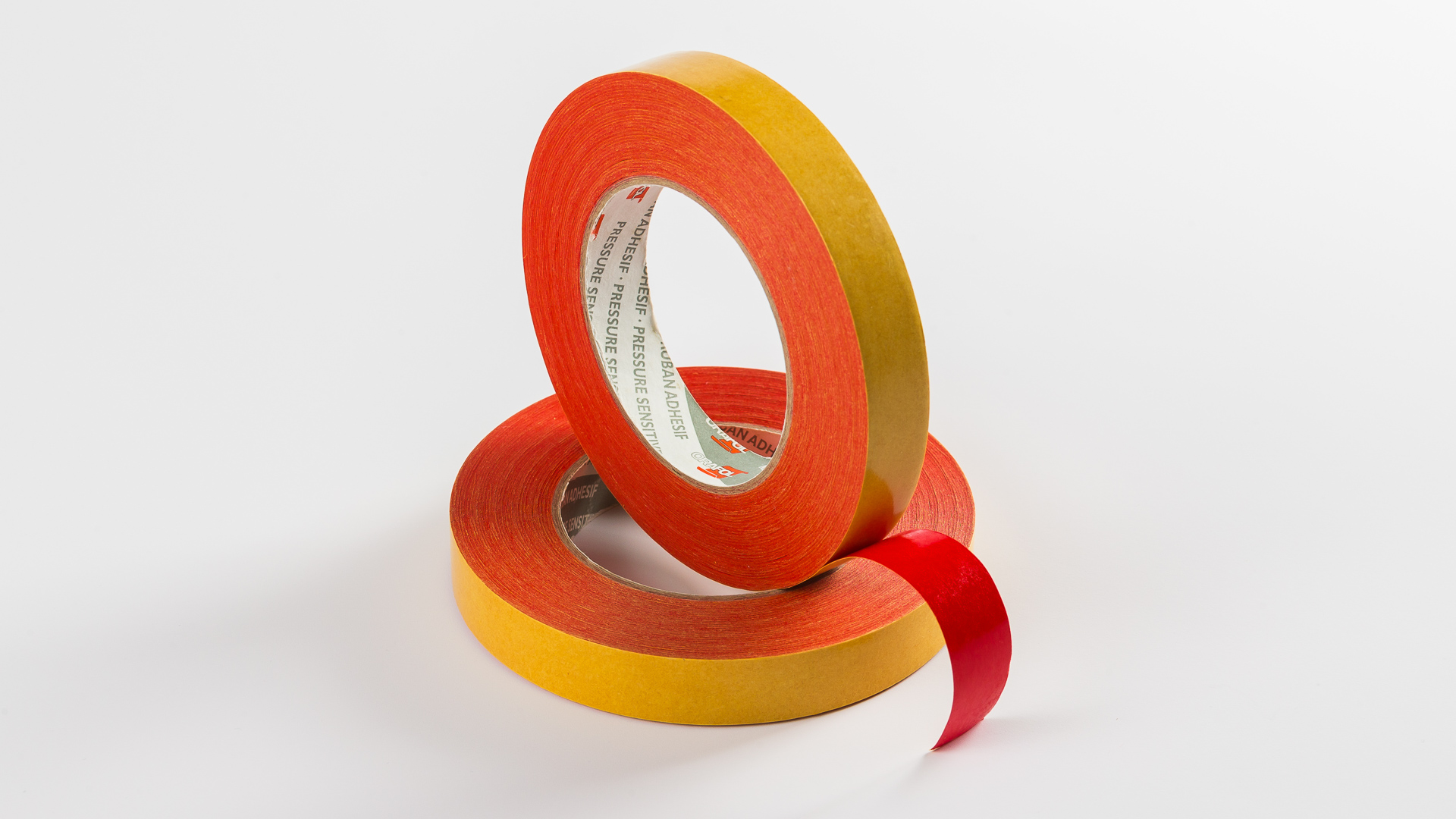

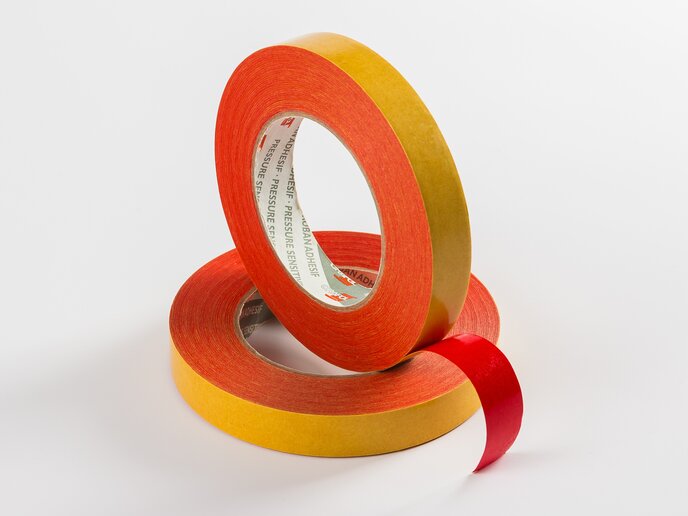

The double-sided adhesive tape consists of a paper fleece carrier that is coated on both sides with a red acrylate adhesive. The adhesive tape has a high resistance against UV radiation, temperature stress, chemicals and solvents. The high-shear resistant adhesive is characterised by excellent permanent adhesion to coated and kraft papers, corrugated cardboard, metal, paint and high-energy surfaces, as well as good permanent adhesion to low-energy surfaces. Because of the red colour the adhesive tape is suitable for processes with visual splice detection. The used adhesive AM7 complies with the Code of Federal Regulations, Food and Drugs (FDA), 21 CFR Ch. I, § 175.105.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 140 °C 		1 h, central European normal climate, short-term up to +160 °C

Adhesive properties

Adhesive power 17 N/25 mm after 1 min, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film
17 N/25 mm after 20 min, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film
17 N/25 mm after 24 h, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 20 N/25 mm Average value, FINAT TM 9
Maximum shear strength 72 Hour(s) at 70 °C, FINAT TM 8 on stainless steel | covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Adhesive covered side Modified acrylate
Adhesive open side Modified acrylate
Carrier Colour carrier: Translucent
Carrier: Paper fleece
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
15 mm
19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
100 mm
Standard width 1000 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
