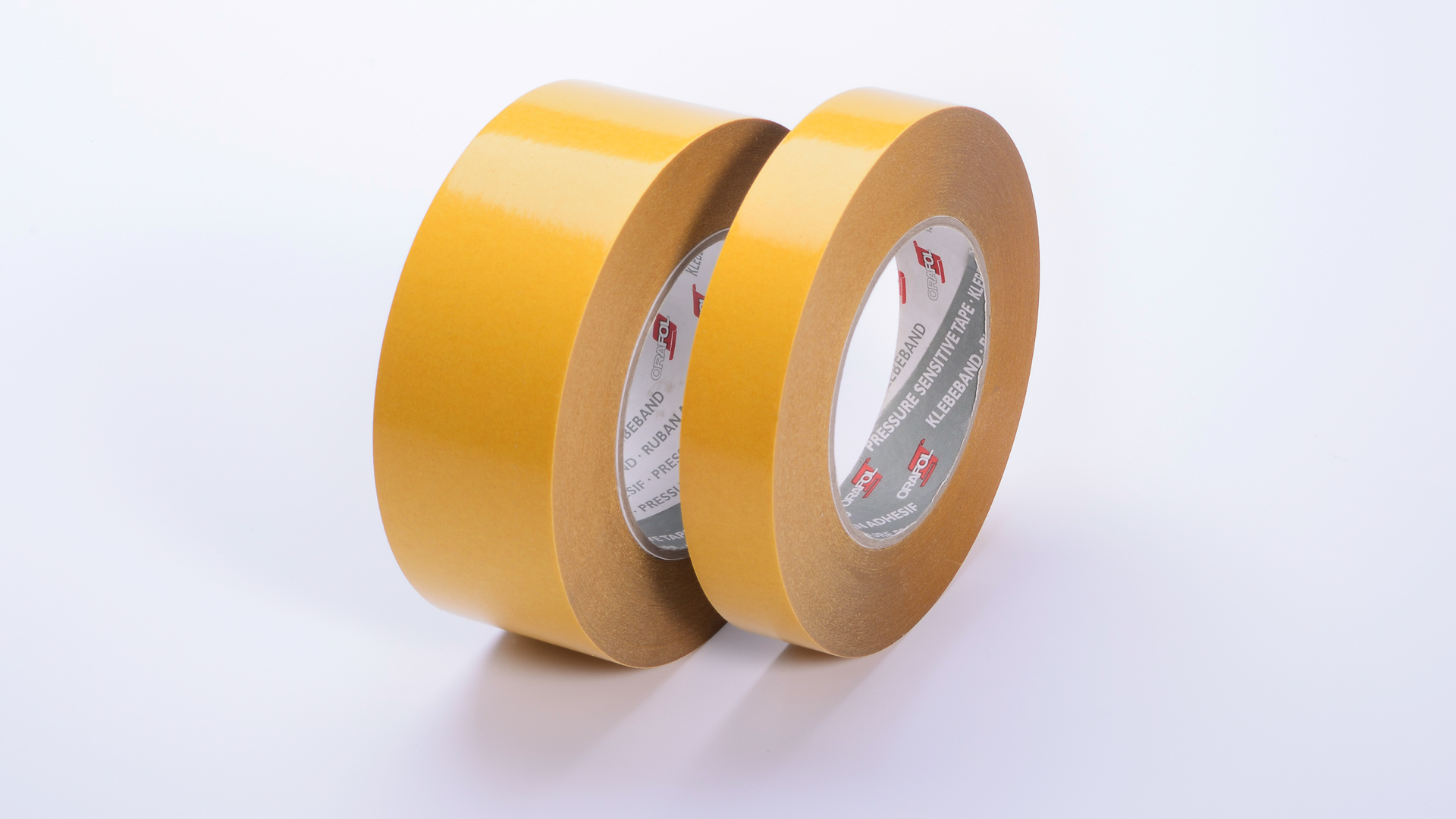

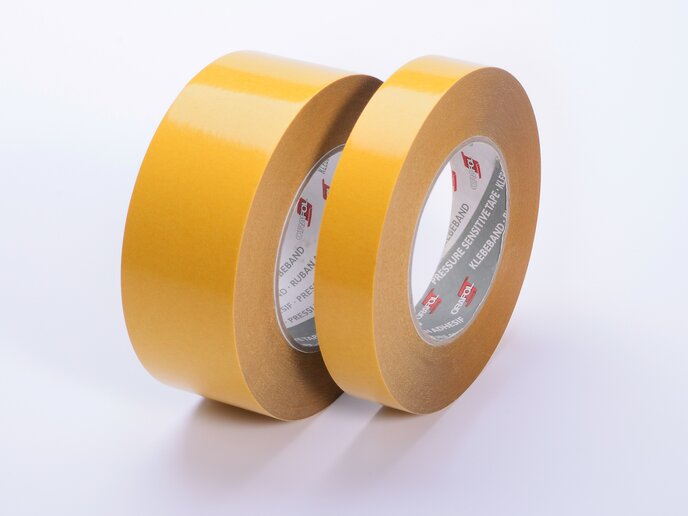

The double-sided adhesive tape consists of a transparent polyester film carrier that is coated on both sides with a modified acrylate adhesive of different adhesive strength. The adhesive on the open adhesive tape side is characterised by high temperature resistance, high tack and moisture resistance. The covered adhesive can be removed again easily and residue-free from many material surfaces.
| Shelf Life | 2 Year(s) | in original packaging at 20 °C and 50 % humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 120 °C |
1 h, central European normal climate |
| Adhesive strength (closed side) | 1 N/25 mm | after 1 min, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film, average value |
|---|---|---|
| 1.2 N/25 mm | after 20 min, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film, average value | |
| 1.5 N/25 mm | after 24 h, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film, average value | |
| Adhesive (open side) | 16 N/25 mm | after 1 min, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film, average value |
| 18 N/25 mm | after 20 min, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film, average value | |
| 20 N/25 mm | after 24 h, on stainless steel | FINAT TM 1, covered on one side with 0.05 mm polyester film, average value | |
| Initial adhesion (loop tack) | 10 N/25 mm | FINAT TM 9, average value |
| Maximum shear strength | 48 Hour(s) | open side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 1 Hour(s) | open side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film | |
| 500 Hour(s) | Covered side, on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film | |
| 72 Hour(s) | Covered side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|
| Adhesive covered side | Modified acrylate |
|---|---|
| Adhesive open side | Modified acrylate |
| Carrier |
Colour carrier: Transparent Carrier: Polyester |
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 15 mm | ||
| 19 mm | ||
| 25 mm | ||
| 30 mm | ||
| 38 mm | ||
| 50 mm | ||
| 60 mm | ||
| 75 mm | ||
| 100 mm | ||
| Standard width | 1000 mm | |
| Standard length | 50 m |
