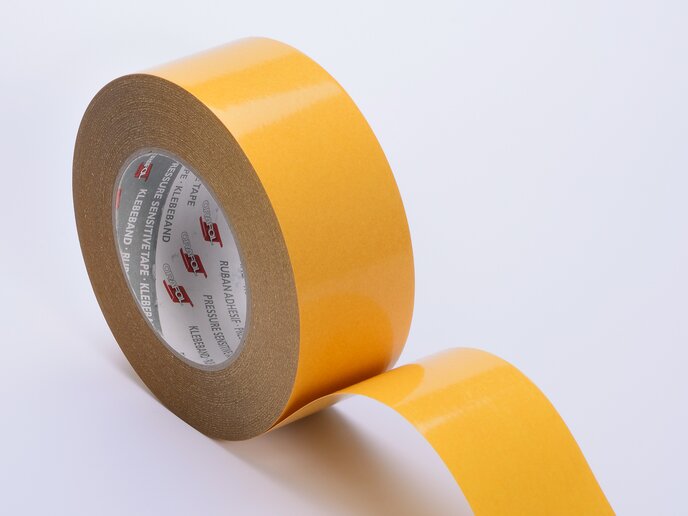

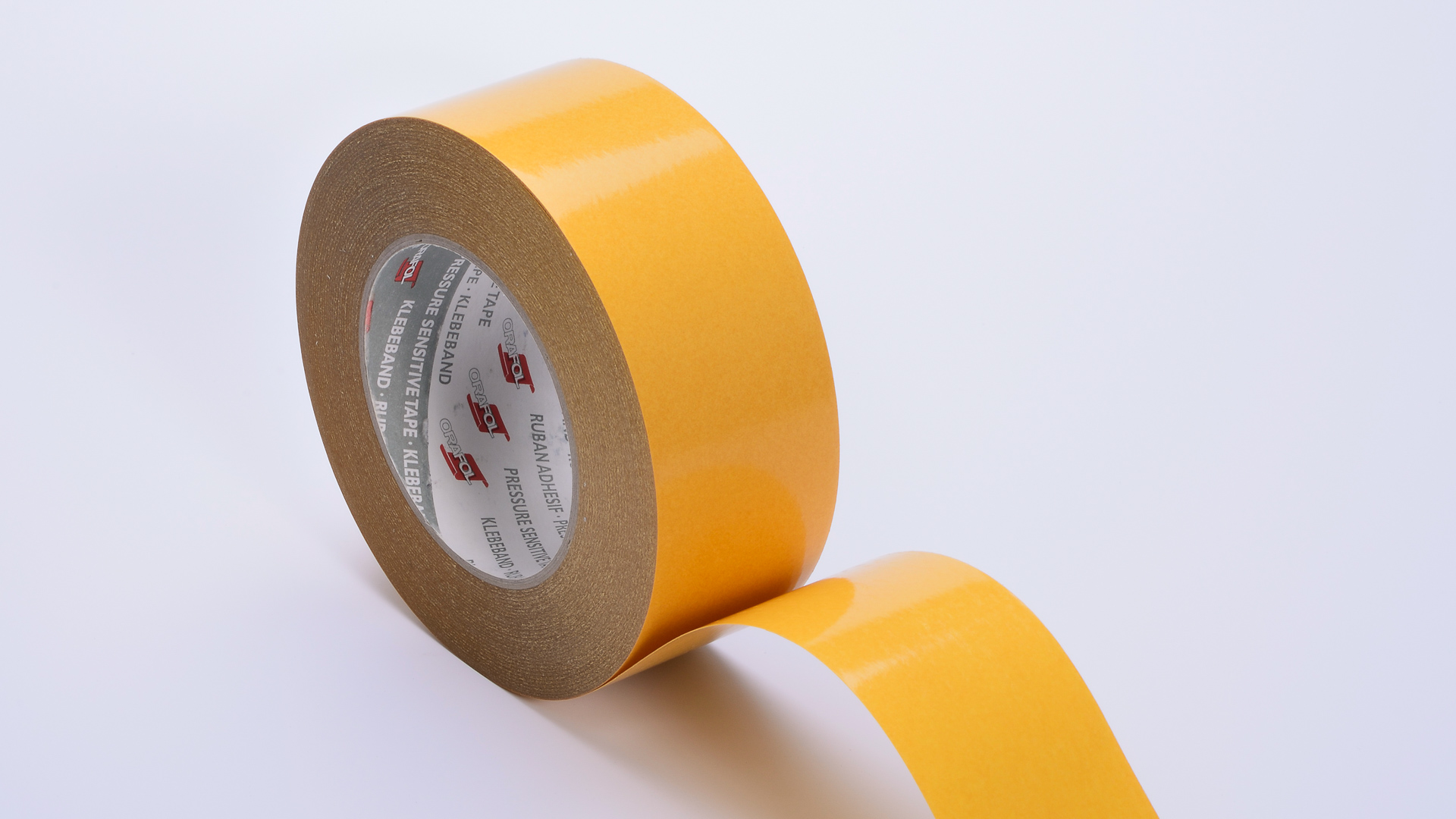

The double-sided adhesive tape consists of a polyester film carrier that is coated on both sides with acrylate adhesives having different adhesive strengths. The adhesive on the open adhesive tape side is characterised by high temperature resistance, high tack force and moisture resistance. The covered adhesive can be removed again easily and residue-free from many material surfaces.
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 120 °C |
central European normal climate |
| Adhesive strength (closed side) | 6 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 7 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 8 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Adhesive (open side) | 16 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
| 18 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 20 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Maximum shear strength | 300 Hour(s) | open side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 72 Hour(s) | open side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film | |
| 300 Hour(s) | Covered side, on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film | |
| 72 Hour(s) | Covered side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|
| Adhesive covered side | Modified acrylate |
|---|---|
| Adhesive open side | Modified acrylate |
| Carrier |
Colour carrier: Transparent Carrier: Polyester |
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 15 mm | ||
| 19 mm | ||
| 25 mm | ||
| 30 mm | ||
| 38 mm | ||
| 50 mm | ||
| 60 mm | ||
| 75 mm | ||
| 100 mm | ||
| Standard width | 1000 mm | |
| Standard length | 50 m |
PDF, 392.52kB, 1 Page
PDF, 39.04kB, 2 Pages
PDF, 88.60kB, 1 Page
PDF, 163.28kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
