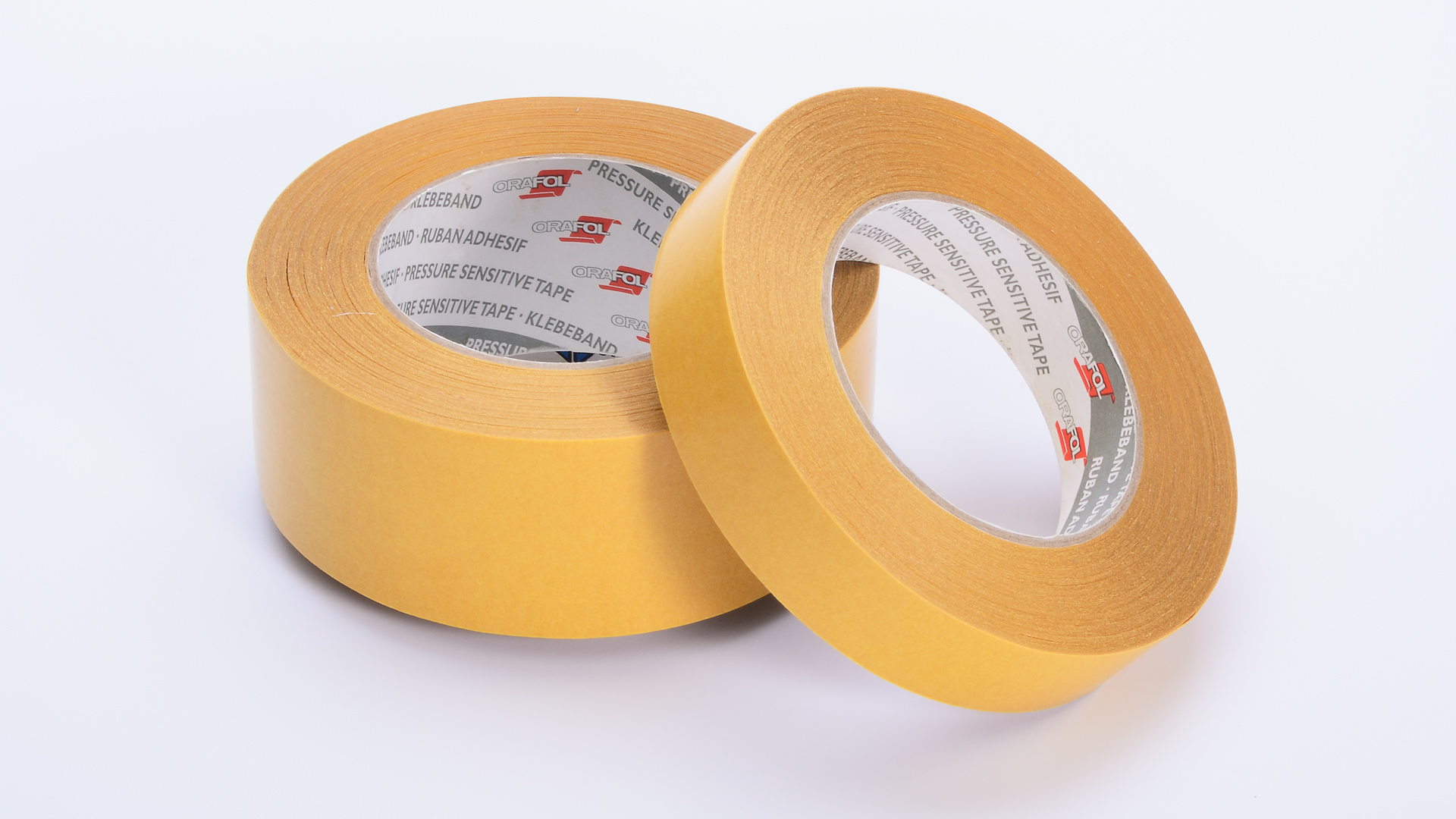

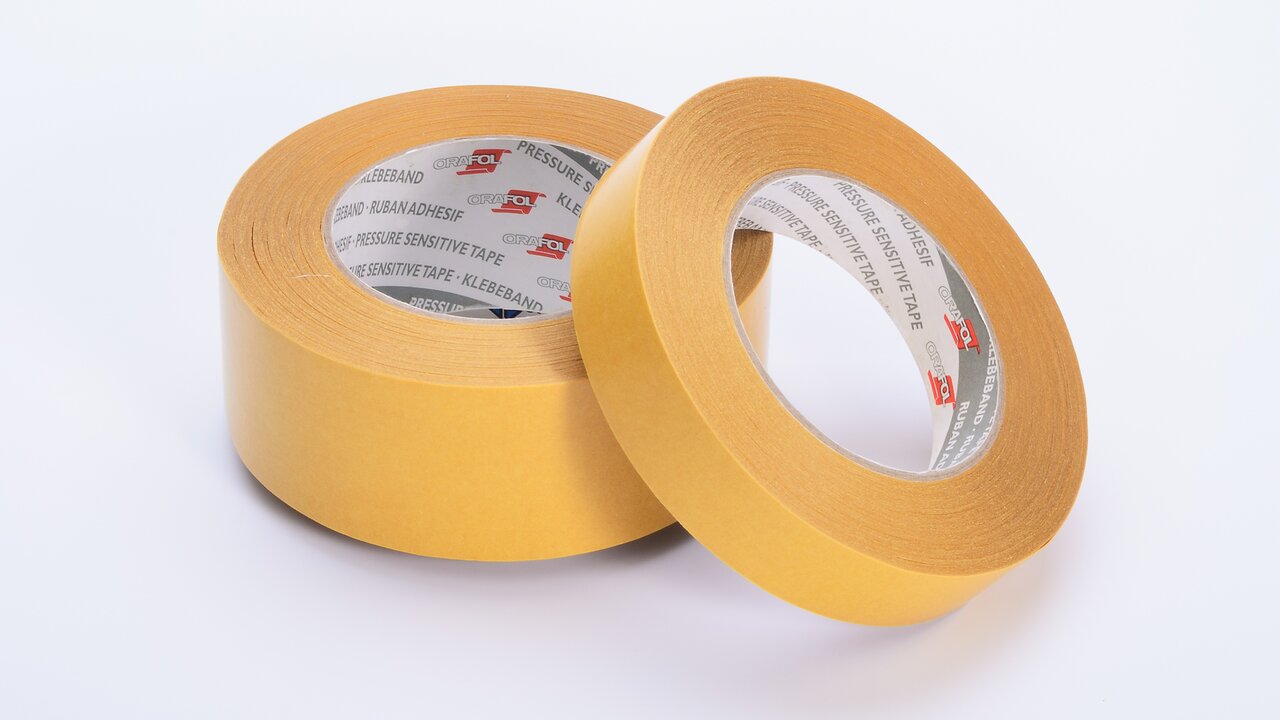

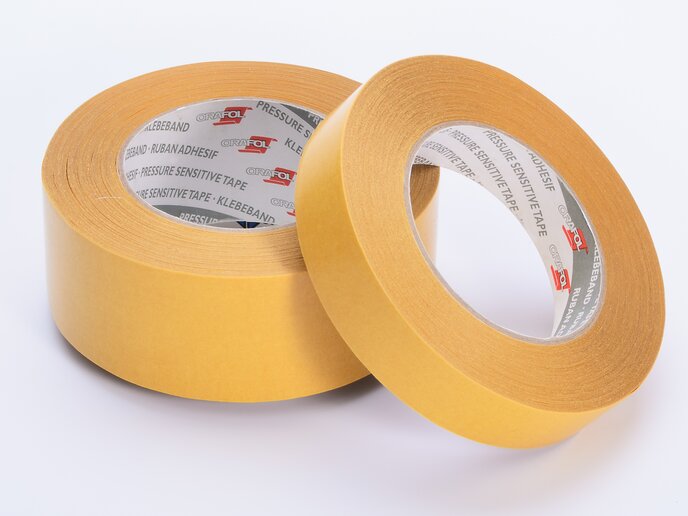

The double-sided adhesive tape consists of a polyester film carrier which is coated on both sides with modified acrylate adhesives of different adhesive strength. The adhesive on the open adhesive tape side is characterised by high temperature resistance, high tack and moisture resistance. The covered adhesive can be removed again easily and residue-free from many material surfaces.
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 120 °C |
central European normal climate |
| Adhesive strength (closed side) | 1 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 1.2 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 1.5 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Adhesive (open side) | 16 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
| 18 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 20 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Maximum shear strength | 48 Hour(s) | open side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 1 Hour(s) | open side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film | |
| 500 Hour(s) | Covered side, on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film | |
| 72 Hour(s) | Covered side, on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|
| Adhesive covered side | Modified acrylate |
|---|---|
| Adhesive open side | Modified acrylate |
| Carrier | Polyester |
| Format | Roll |
|---|---|
| Standard width | 1000 mm |
| Standard length | 50 m |
