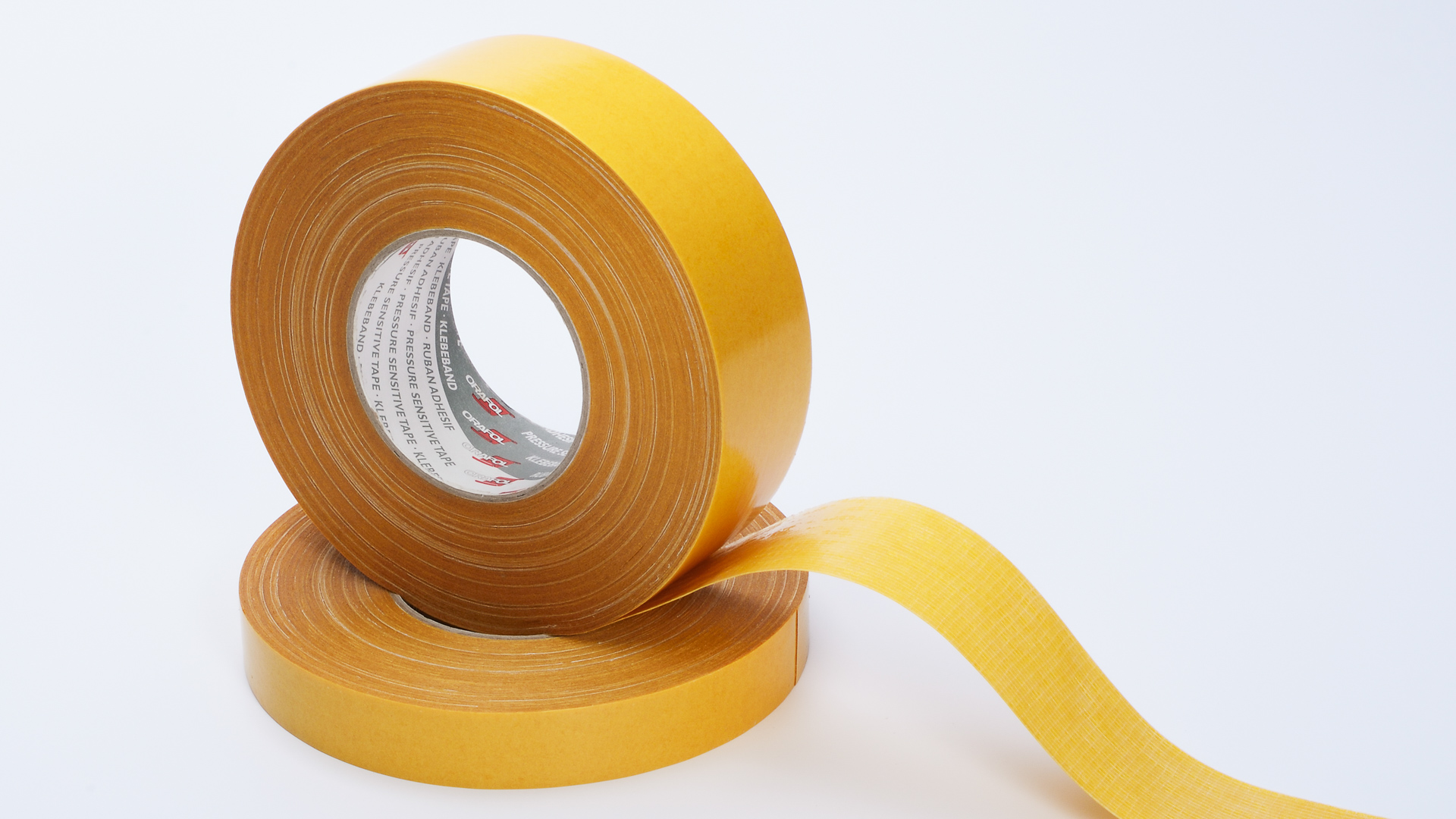

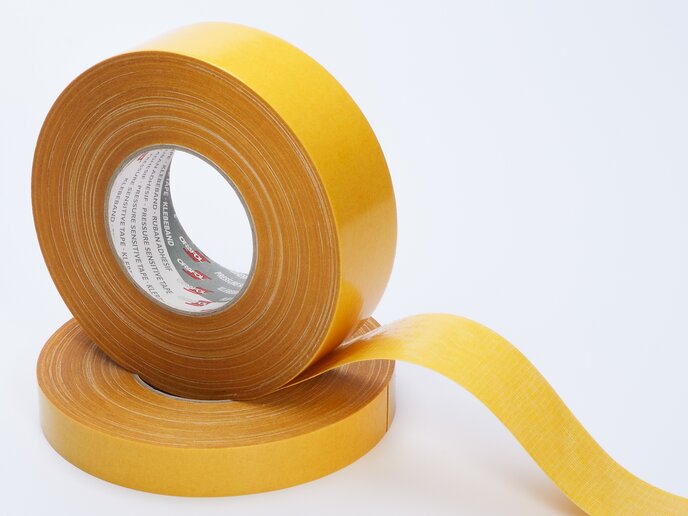

The double-sided adhesive tape consists of a rayon fabric which is coated on both sides with a modified acrylate adhesive. The adhesive is characterised by a high temperature and ageing resistance as well as high adhesion with extensive plasticiser resistance.
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 140 °C |
1 h, central European normal climate |
| Adhesive power | 25 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 27 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 30 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Initial adhesion (loop tack) | 27 N/25 mm | Average value, FINAT TM 9 |
| Maximum shear strength | 7 Hour(s) | at 23 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 0.25 Hour(s) | at 70 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|---|
| Adhesive material | EPDM, Cell rubber, Open-pored and impregnated foams, Cloth fabric, Soft PVC, Cellular polythene |
| Substrate material /substrate | Cloth fabric |
| Adhesive covered side | Modified dispersion acrylate |
|---|---|
| Adhesive open side | Modified dispersion acrylate |
| Carrier |
Colour carrier: White Carrier: Rayon fabric |
| Format | Roll |
|---|---|
| Standard width | 1000 mm |
| Standard length | 50 m |
