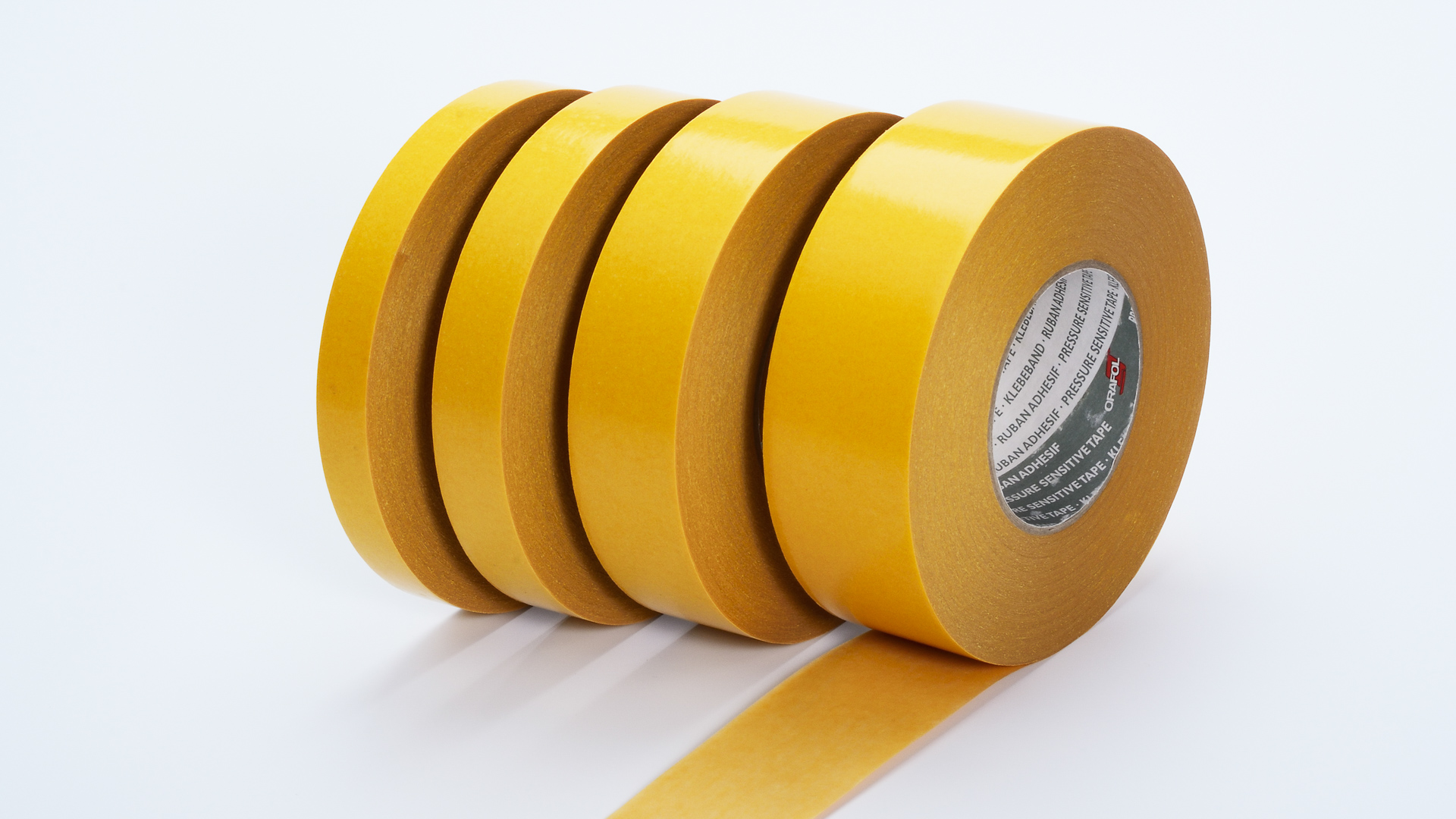

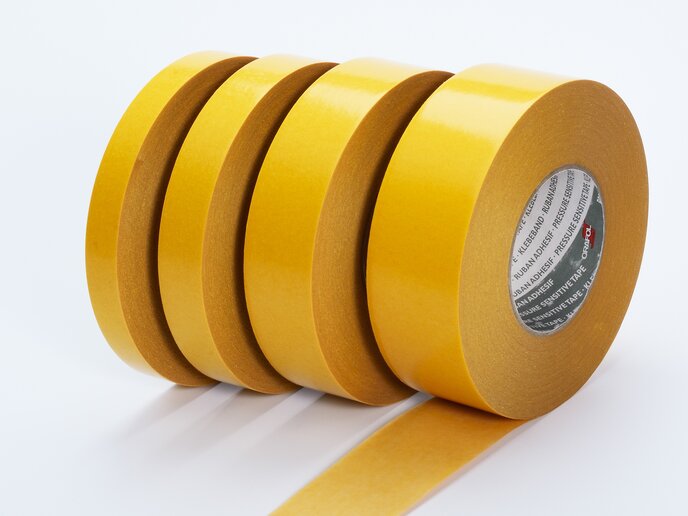

The double-sided adhesive tape consists of paper fleece carrier that is coated on both sides with a modified acrylate adhesive. The adhesive has a high shear resistance and high temperature and age resistance. Despite its high adhesive strength, it is largely insensitive to plasticisers.
| Shelf Life | 2 Year(s) | in original packaging at 20 °C and 50 % humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 140 °C |
1 h, central European normal climate |
| Adhesive power | 20 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 22 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 25 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Initial adhesion (loop tack) | 22 N/25 mm | Average value, FINAT TM 9 |
| Maximum shear strength | 72 Hour(s) | at 23 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 0.35 Hour(s) | at 70 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|
| Adhesive covered side | Modified dispersion acrylate |
|---|---|
| Adhesive open side | Modified dispersion acrylate |
| Carrier |
Colour carrier: Translucent Carrier: Paper fleece |
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 15 mm | ||
| 19 mm | ||
| 25 mm | ||
| 30 mm | ||
| 38 mm | ||
| 50 mm | ||
| 60 mm | ||
| 75 mm | ||
| 100 mm | ||
| Standard width | 1000 mm | |
| 1550 mm | ||
| Standard length | 50 m |
