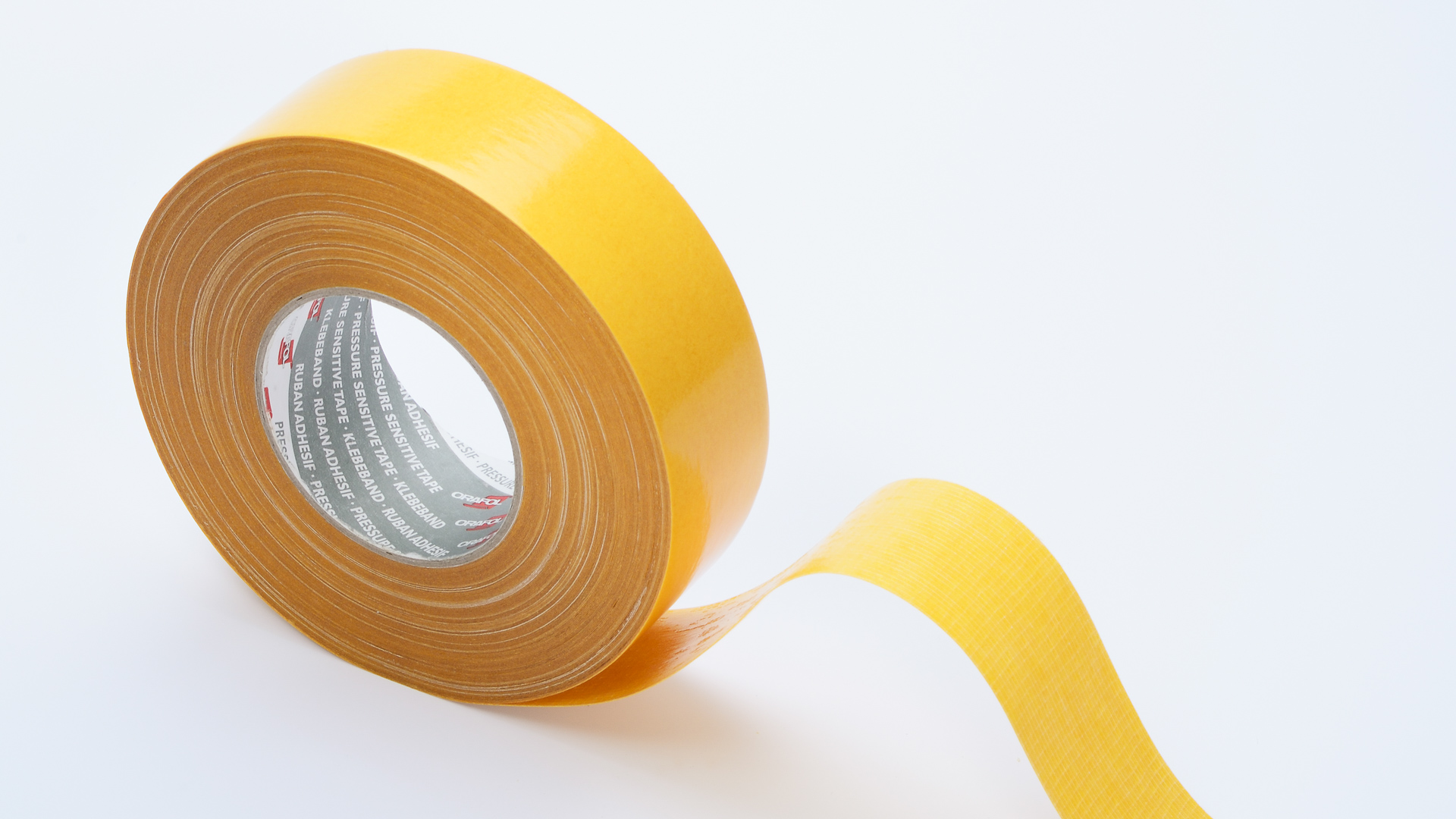

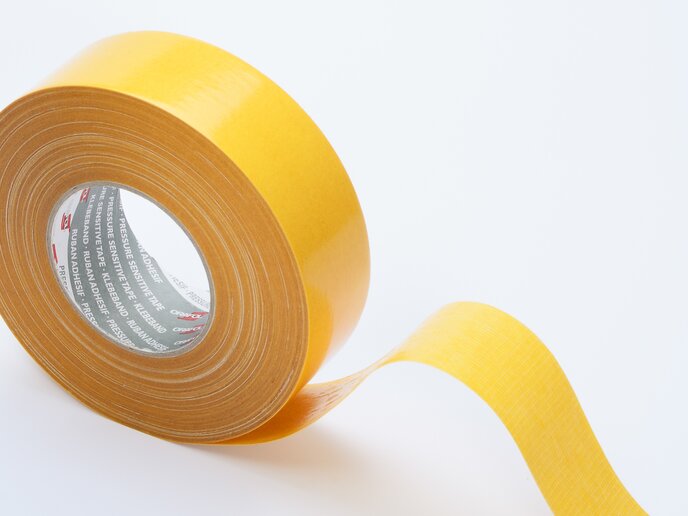

The double-sided adhesive tape consists of a very flexible rayon fabric which is coated on both sides with a modified acrylate adhesive. The aggressively adhering adhesive is characterised by high resistance to ageing and extensive plasticiser resistance. The used adhesive AD7 complies with the Code of Federal Regulations, Food and Drugs (FDA), 21 CFR Ch. I, § 175.105.
| Shelf Life | 2 Year(s) | in original packaging at 20 °C and 50 % humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 120 °C |
1 h, central European normal climate |
| Adhesive power | 25 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film, on stainless steel, covered on side with 0.05 mm polyester film |
|---|---|---|
| 27 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film, on stainless steel, covered on side with 0.05 mm polyester film | |
| 30 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film, on stainless steel, covered on side with 0.05 mm polyester film | |
| Initial adhesion (loop tack) | 25 N/25 mm | Average value, FINAT TM 9 |
| Maximum shear strength | 6 Hour(s) | at 23 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 0.25 Hour(s) | at 70 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|
| Adhesive covered side | Modified dispersion acrylate |
|---|---|
| Adhesive open side | Modified dispersion acrylate |
| Carrier |
Colour carrier: White Carrier: Rayon fabric |
| Format | Roll |
|---|---|
| Standard width | 1000 mm |
| Standard length | 50 m |
