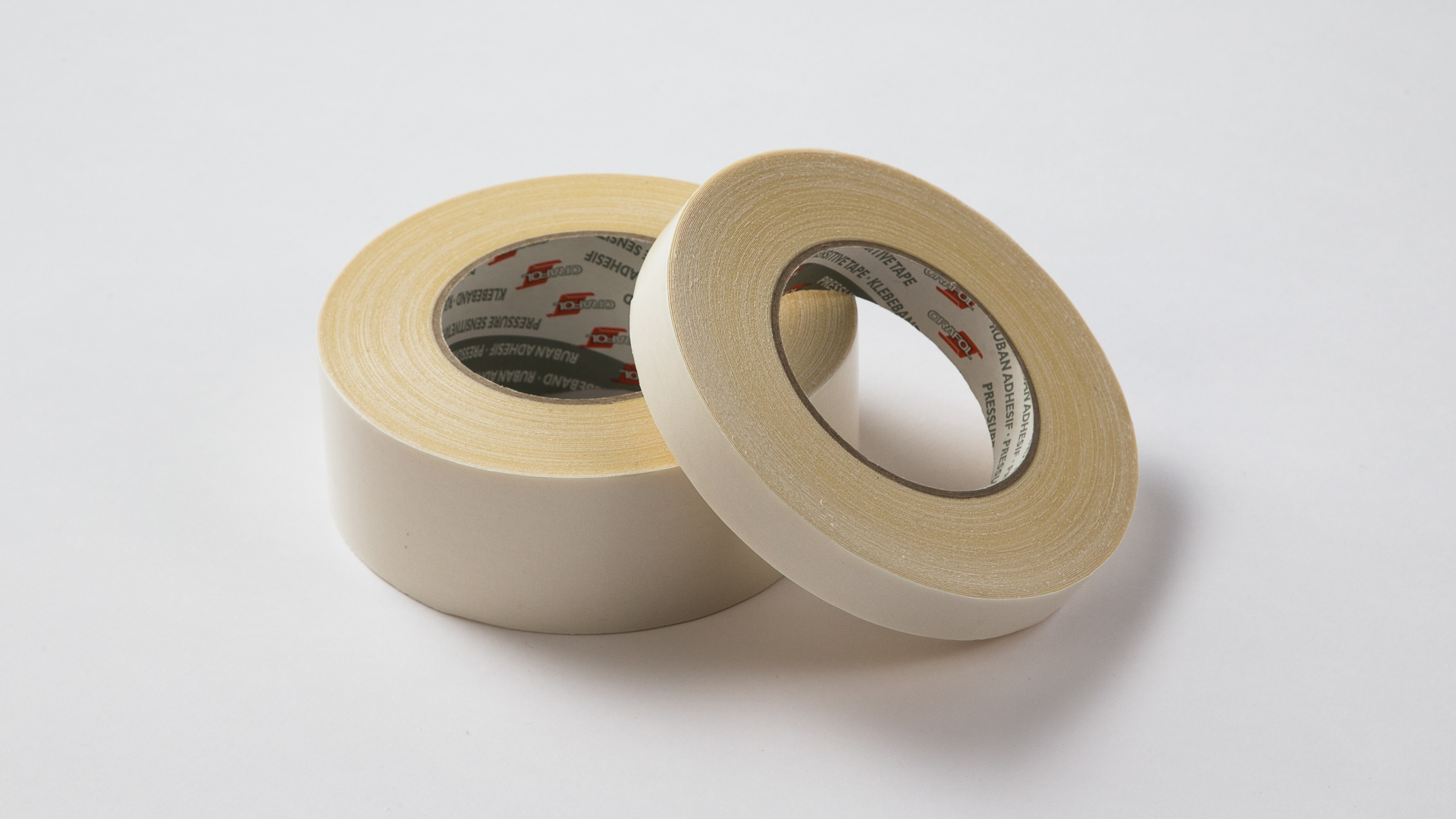

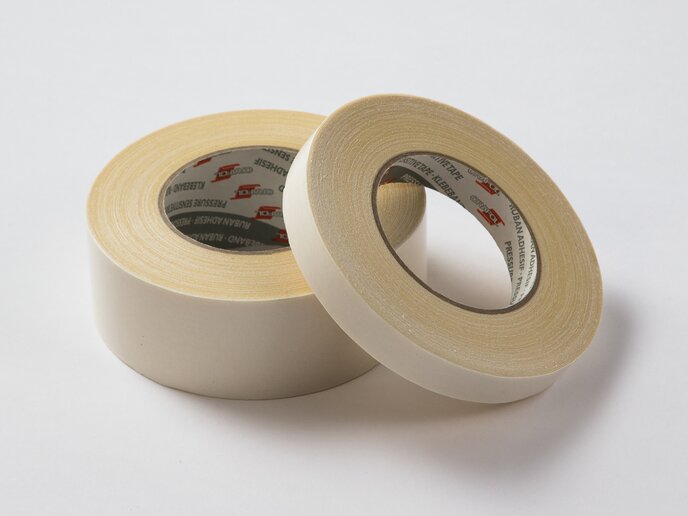

The double-sided adhesive tape consists of a special fabric carrier that is coated on both sides with an acrylate adhesive. This adhesive is resistant to ageing and largely plasticiser-resistant, as well as flame-retardant and self-extinguishing in the event of fire. Tested in accordance with FAR 25.853 App. F.
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 100 °C |
1 h, central European normal climate |
| Adhesive power | 14 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 16 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 18 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Maximum shear strength | 4 Hour(s) | at 23 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 0.1 Hour(s) | at 70 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|
| Adhesive covered side | Dispersion acrylate |
|---|---|
| Adhesive open side | Dispersion acrylate |
| Carrier | Polyamide fabric |
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 38 mm | |
| 50 mm | ||
| Standard width | 1550 mm | |
| Standard length | 25 m | |
| 50 m |
PDF, 135.79kB, 1 Page
PDF, 39.04kB, 2 Pages
PDF, 89.14kB, 1 Page
PDF, 163.28kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
