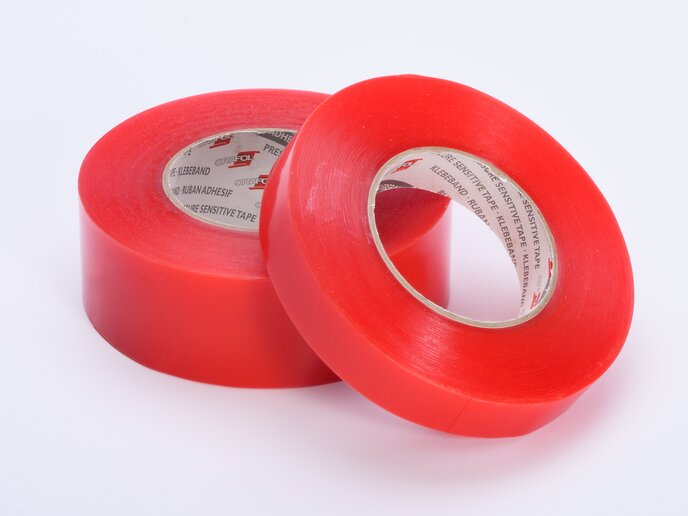

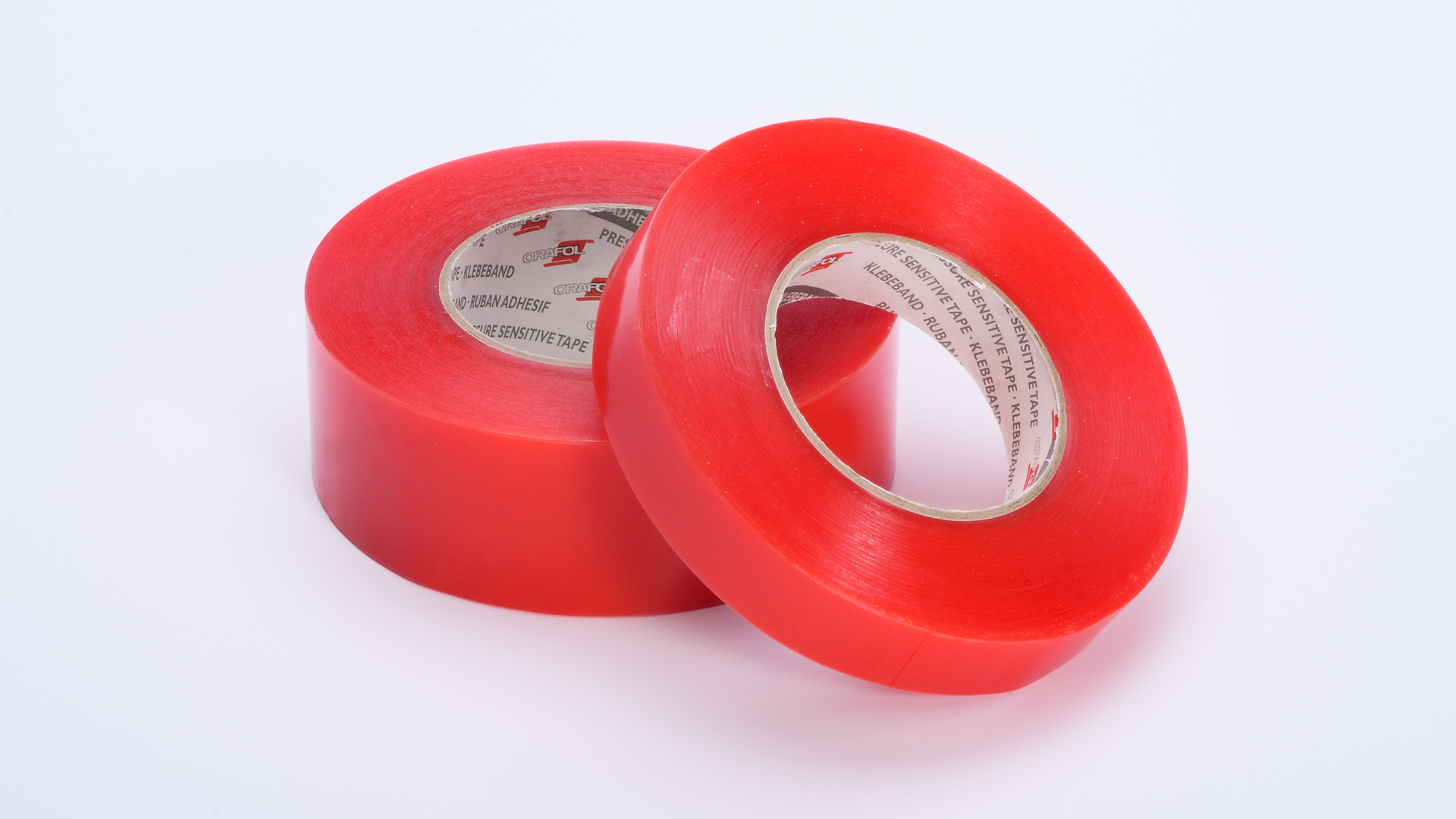

ORABOND® 1391PP

The double-sided adhesive tape consists of a transparent polyester film carrier that is coated on both sides with a modified acrylate adhesive which shows a very good resistance against UV radiation, temperature stress, chemicals and solvents as well as moisture. The shear-resistant adhesive also has excellent permanent adhesion to metal, paint and other high-energy plastic surfaces as well as good permanent adhesion to low-energy surfaces

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging at 20 °C and 50 % relative humidity
Resistance to solvents and chemicals Mineral oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis with professional bonding | resistant against most
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 160 °C 		1 h, central European normal climate | short-term up to +180 °C

Adhesive properties

Adhesive power 18 N/25 mm after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
25 N/25 mm after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
29 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 28 N/25 mm Average value, FINAT TM 9
Maximum shear strength 400 Hour(s) at 23 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
6 Hour(s) at 70 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Liner Liner: PP film silicone-coated on both sides
Colour cover material: Red
Adhesive covered side Modified acrylate
Adhesive open side Modified acrylate
Carrier Colour carrier: Transparent
Carrier: Polyester
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
15 mm
19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
100 mm
Standard width 1000 mm
1372 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
