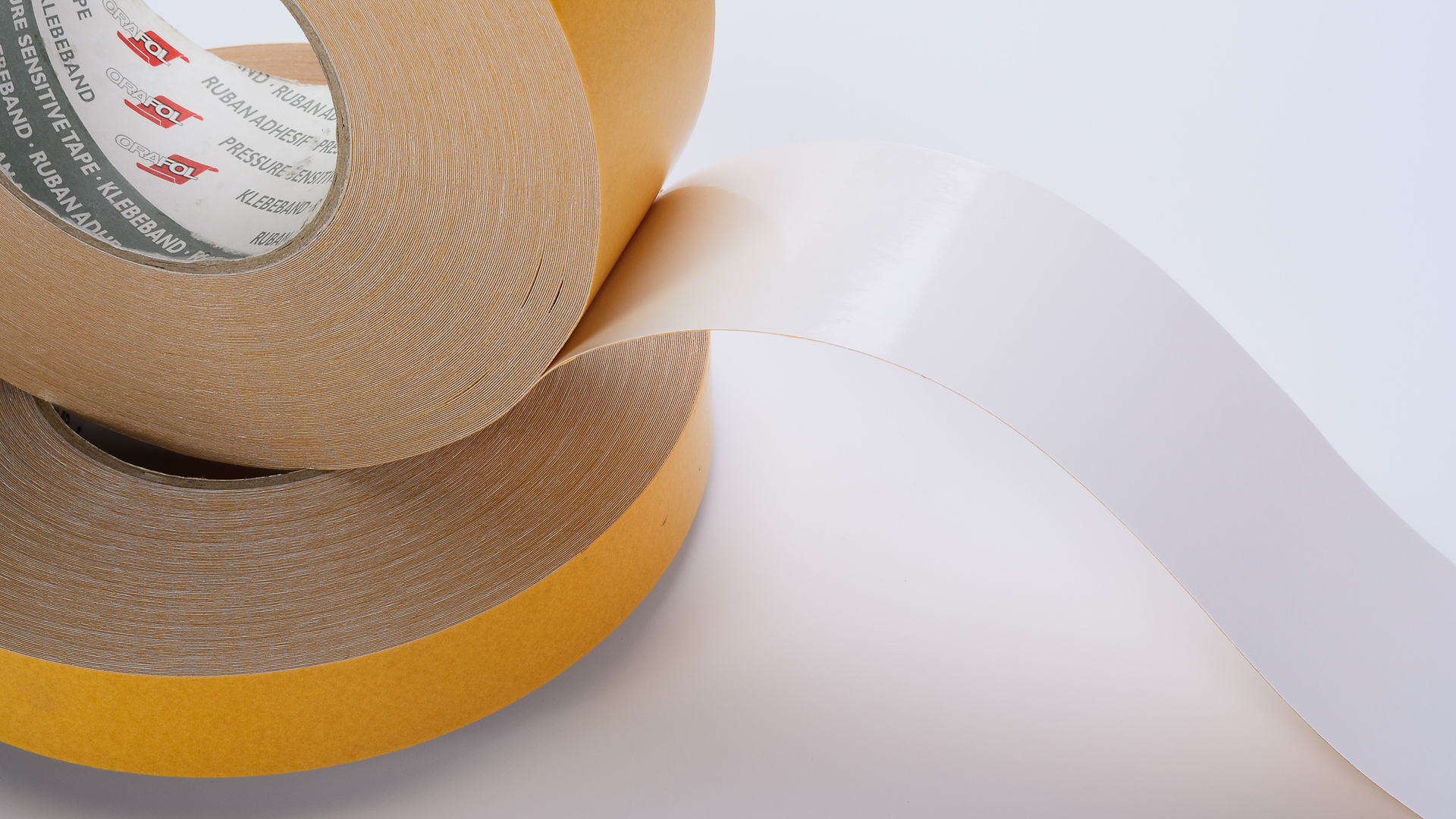

ORABOND® 1393

The double-sided adhesive tape consists of a soft PVC film carrier that is coated on both sides with a modified acrylate adhesive which has a very good resistance against UV radiation, temperature stress, chemicals and solvents as well as moisture. The shear-resistant adhesive also has excellent permanent adhesion to metal, paint and other high-energy plastic surfaces as well as good permanent adhesion to low-energy surfaces. Also suitable for rough or structured surfaces because of high mass application.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s)
Resistance to solvents and chemicals Mineral oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis
UV resistance Highly recommended
Water resistance Highly recommended
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 80 °C 		central European normal climate | short-term up to +90 °C

Adhesive properties

Adhesive power 35 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
38 N/25 mm on stainless steel, after 20 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
42 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 45 N/25 mm
Maximum shear strength 400 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
6 Hour(s) on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Substrate material /substrate Highly energetic plastics, Paint, Metal
Product Construction
Liner Liner: Paper siliconised on both sides
Surface weight: 90 g/m²
Adhesive covered side Modified acrylate
Adhesive open side Modified acrylate
Carrier PVC
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
15 mm
19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
100 mm
Standard width 1000 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
