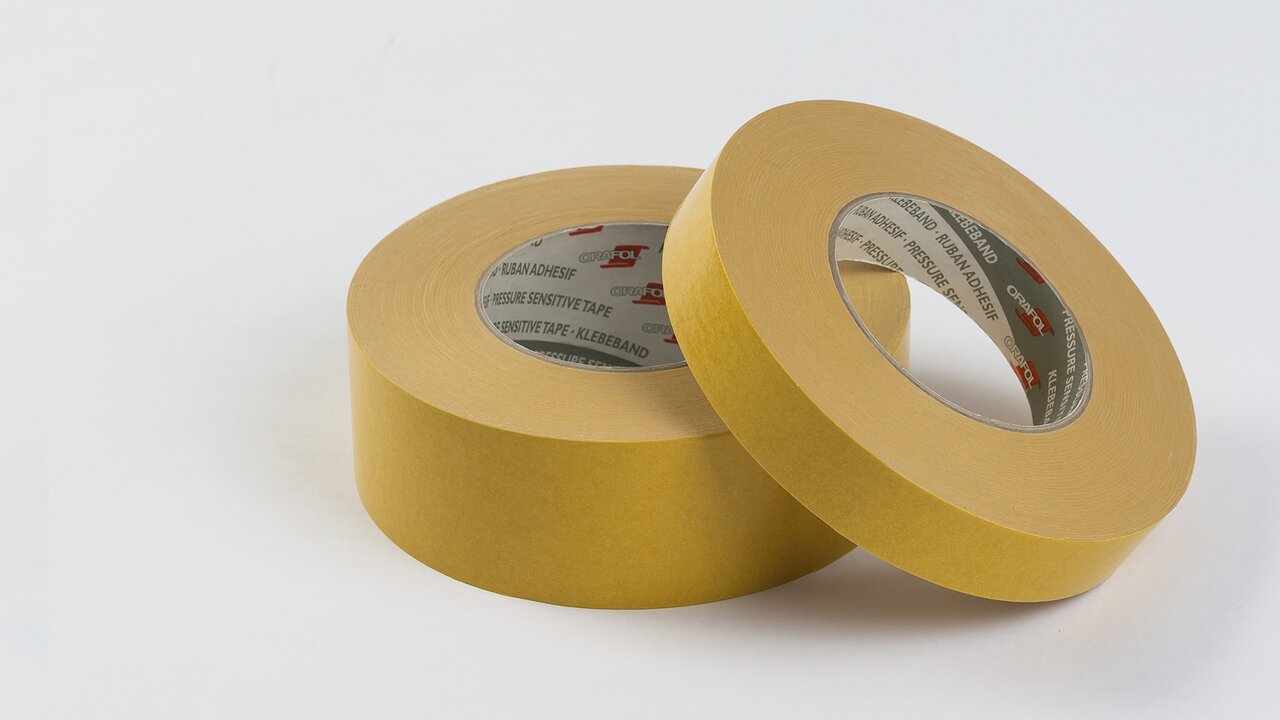

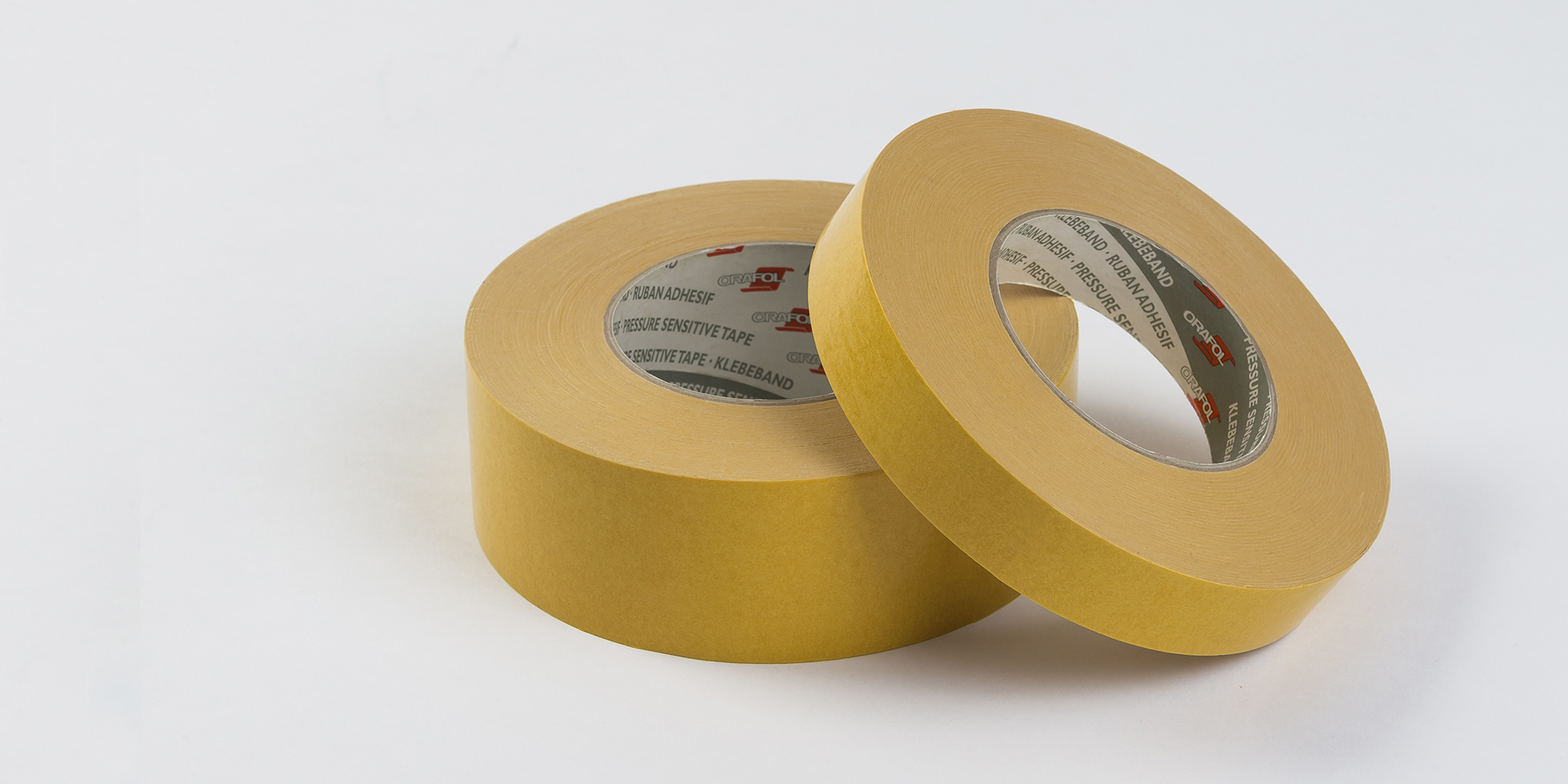

ORABOND® 13941

The double-sided adhesive tape consists of a transparent polyester film carrier that is coated on both sides with a modified acrylate adhesive which shows a very good resistance against UV radiation, temperature stress, chemicals and solvents as well as moisture. The high-shear-resistant adhesive is characterised by excellent permanent adhesion to metal, paint and high-energy plastic surfaces as well as good permanent adhesion to low-energy surfaces.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Resistance to solvents and chemicals Mineral oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis
UV resistance Highly recommended
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 160 °C 		central European normal climate | short-term up to +180 °C

Adhesive properties

Adhesive power 18 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
18 N/25 mm on stainless steel, after 20 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
18 N/25 mm after 24 h, on stainless steel
Maximum shear strength 400 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
6 Hour(s) on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Substrate material /substrate Highly energetic plastics, Paint, Metal
Product Construction
Adhesive covered side Modified acrylate
Adhesive open side Modified acrylate
Carrier Colour carrier: Transparent
Carrier: Polyester
Dimensions
Format Roll
Standard width 1350 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
