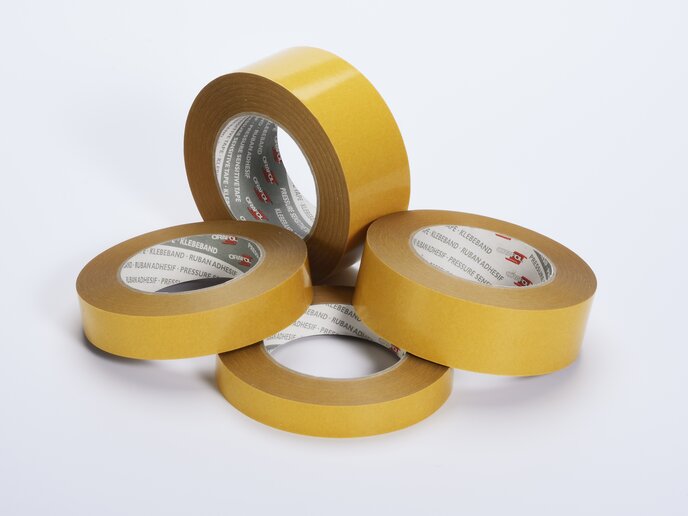

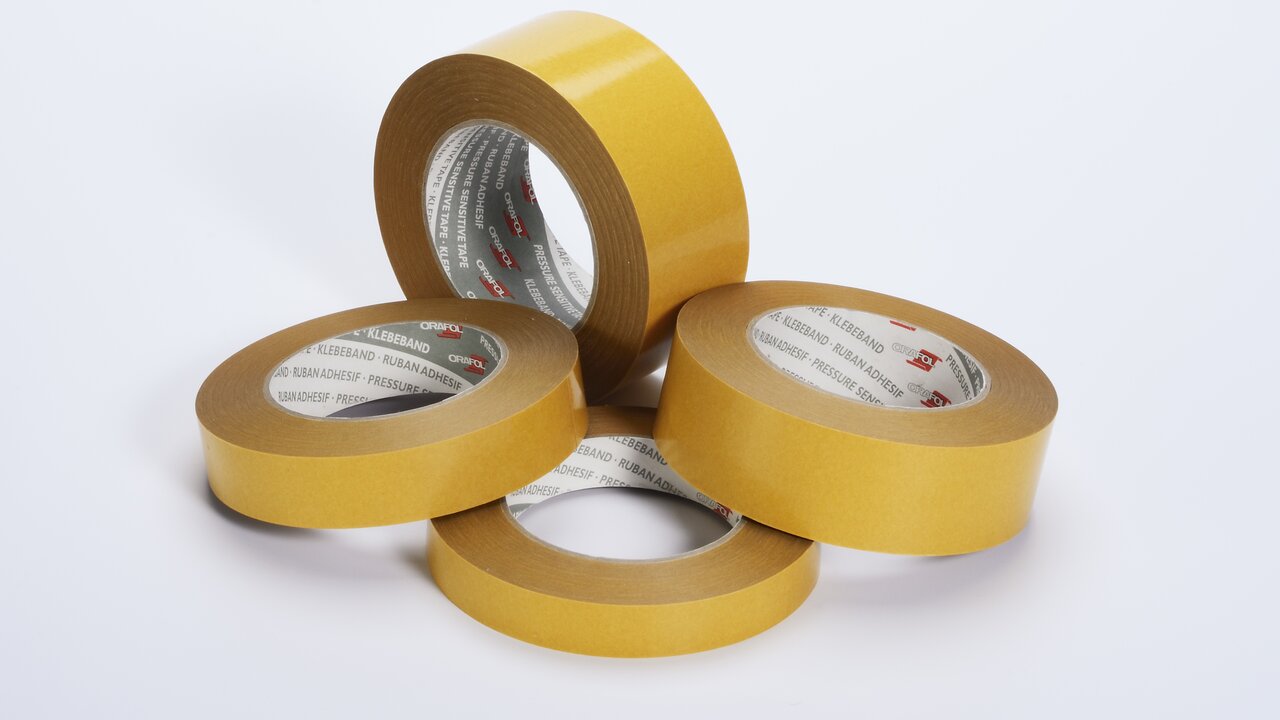

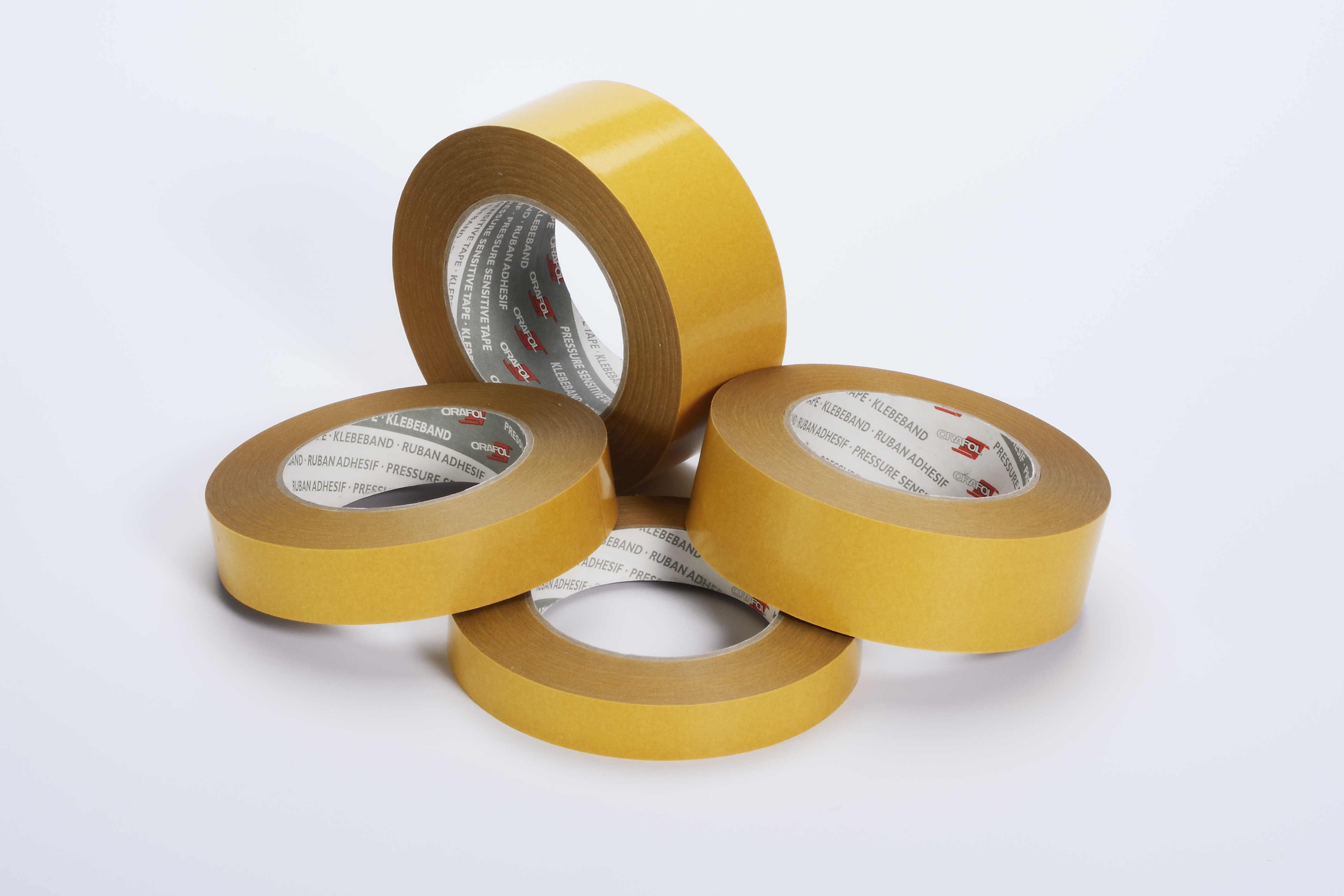

The double-sided adhesive tape consists of a polyester film carrier with high electric dielectric strength that is coated on both sides with a modified acrylate adhesive. The shear-resistant adhesive also has excellent permanent adhesion to metal, paint and other high-energy plastic surfaces as well as good permanent adhesion to low-energy surfaces.
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Resistance to solvents and chemicals | Mineral oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis | |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 160 °C |
1 h, central European normal climate | short-term up to +180 °C |
| Adhesive power | 8 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1, covered with 0.05 mm polyester film |
|---|---|---|
| 9 N/25 mm | on stainless steel, after 20 min | Average value, FINAT TM 1, covered with 0.05 mm polyester film | |
| 11 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered with 0.05 mm polyester film | |
| Maximum shear strength | 400 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 72 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|---|
| Substrate material /substrate | Highly energetic plastics, Paint, Metal |
| Adhesive covered side | Modified acrylate | |
|---|---|---|
| Adhesive open side | Modified acrylate | |
| Carrier |
Colour carrier: Transparent Carrier: Polyester |
| Format | Roll |
|---|---|
| Standard width | 1350 mm |
