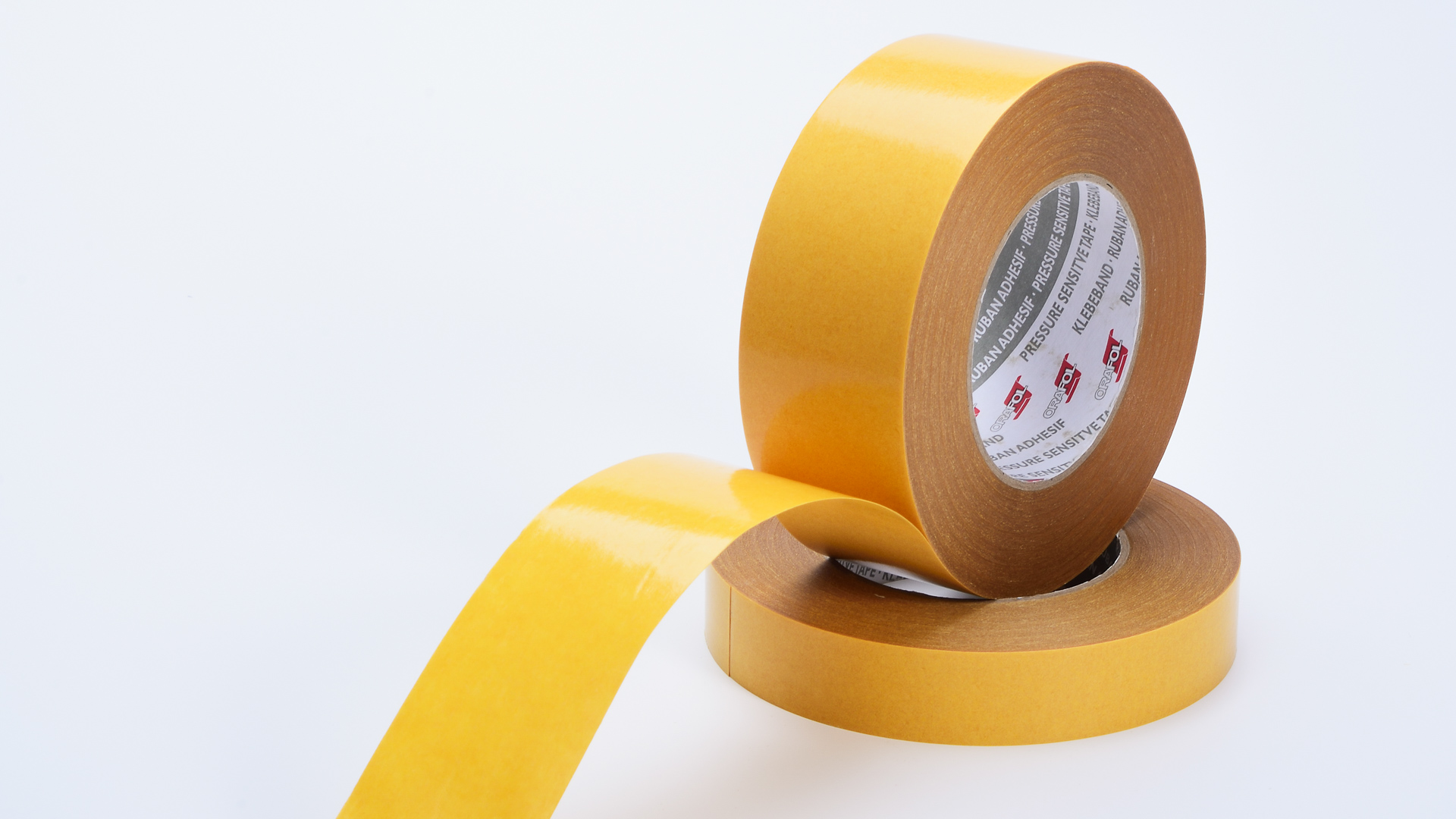

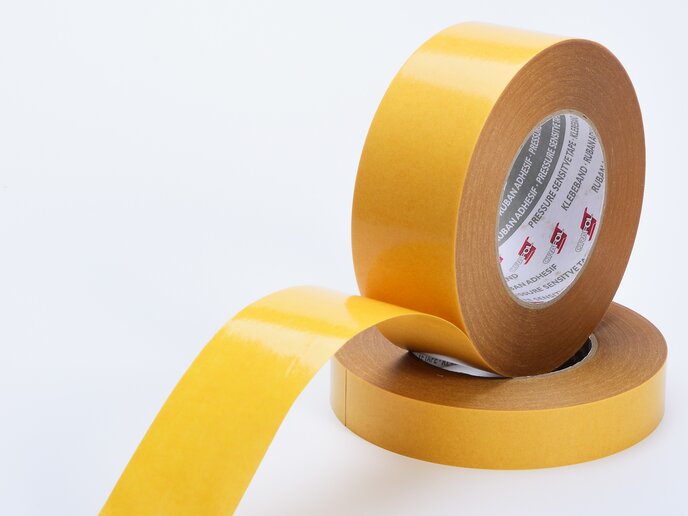

The double-sided adhesive tape consists of a paper fleece carrier that is coated on both sides with a rubber adhesive. The adhesive is characterised by good shear strength and ageing resistance.
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 70 °C |
1 h, central European normal climate |
| Adhesive power | 25 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 27 N/25 mm | on stainless steel, after 20 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 30 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Initial adhesion (loop tack) | 16 N/25 mm | Average value, FINAT TM 9 |
| Maximum shear strength | 72 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 0.12 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|
| Adhesive covered side | Synthetic rubber | |
|---|---|---|
| Adhesive open side | Synthetic rubber | |
| Carrier | Paper fleece |
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 15 mm | ||
| 19 mm | ||
| 25 mm | ||
| 30 mm | ||
| 38 mm | ||
| 50 mm | ||
| 60 mm | ||
| 75 mm | ||
| 100 mm | ||
| Standard width | 1000 mm | |
| 1200 mm | ||
| Standard length | 50 m |
