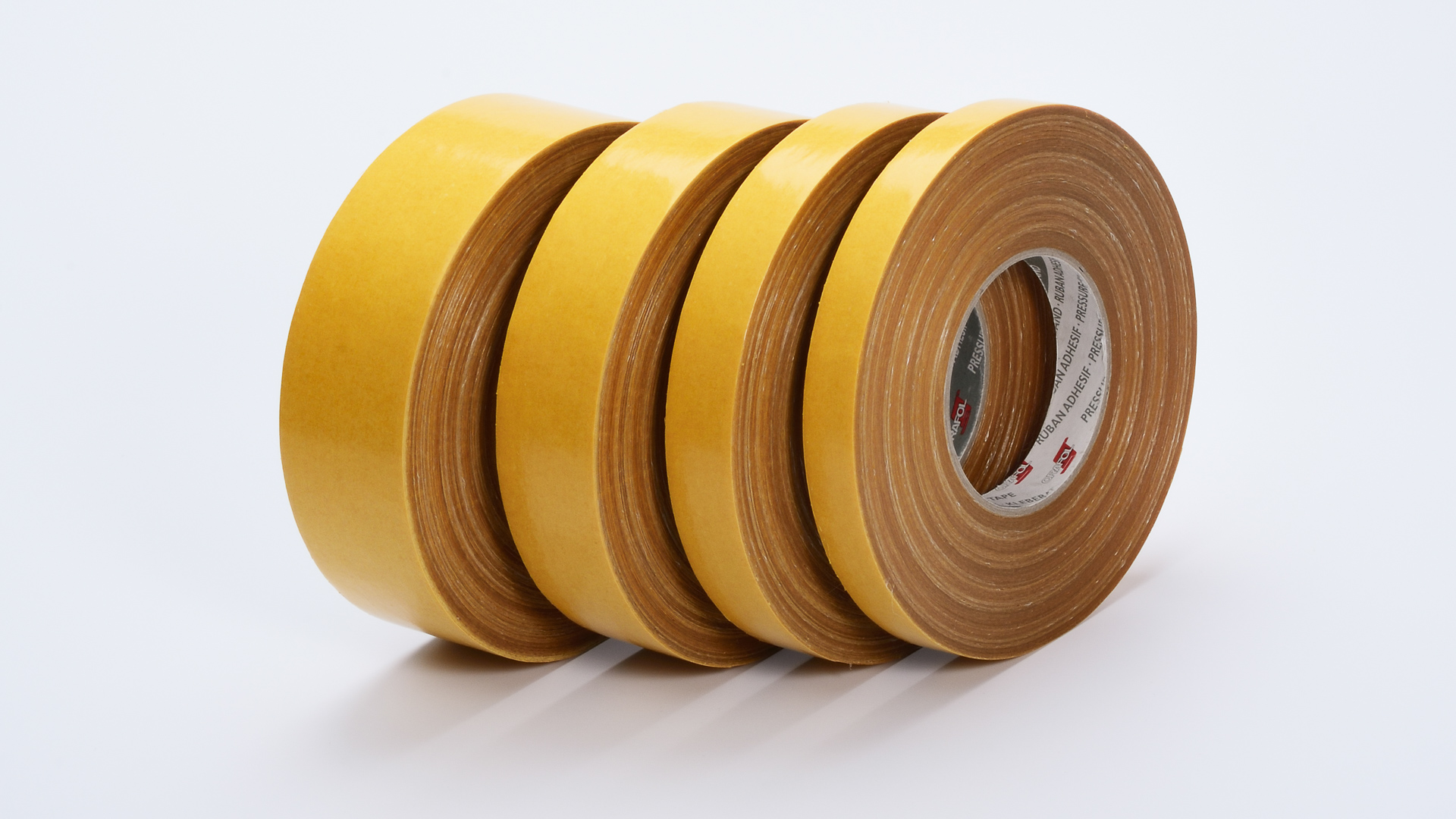

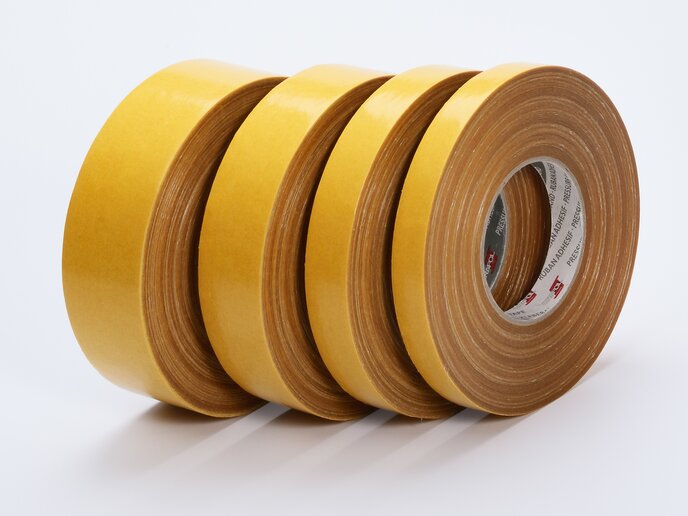

The double-sided adhesive tape consists of a glass fibre mesh tape that is coated on both sides with a rubber adhesive. The adhesive is characterised by high adhesion and good ageing resistance.
| Shelf Life | 1 Year(s) | |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 100 °C |
1 h, central European normal climate |
| Adhesive power | 35 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 40 N/25 mm | on stainless steel, after 20 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 45 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Initial adhesion (loop tack) | 56 N/25 mm | Average value, FINAT TM 9 |
| Maximum shear strength | 24 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 0.17 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 15 °C |
|---|
| Adhesive covered side | Synthetic rubber | |
|---|---|---|
| Adhesive open side | Synthetic rubber | |
| Carrier | Glass fibre fabrics |
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 15 mm | ||
| 19 mm | ||
| 25 mm | ||
| 30 mm | ||
| 38 mm | ||
| 50 mm | ||
| 60 mm | ||
| 75 mm | ||
| 100 mm | ||
| Standard width | 1000 mm | |
| Standard length | 50 m |
