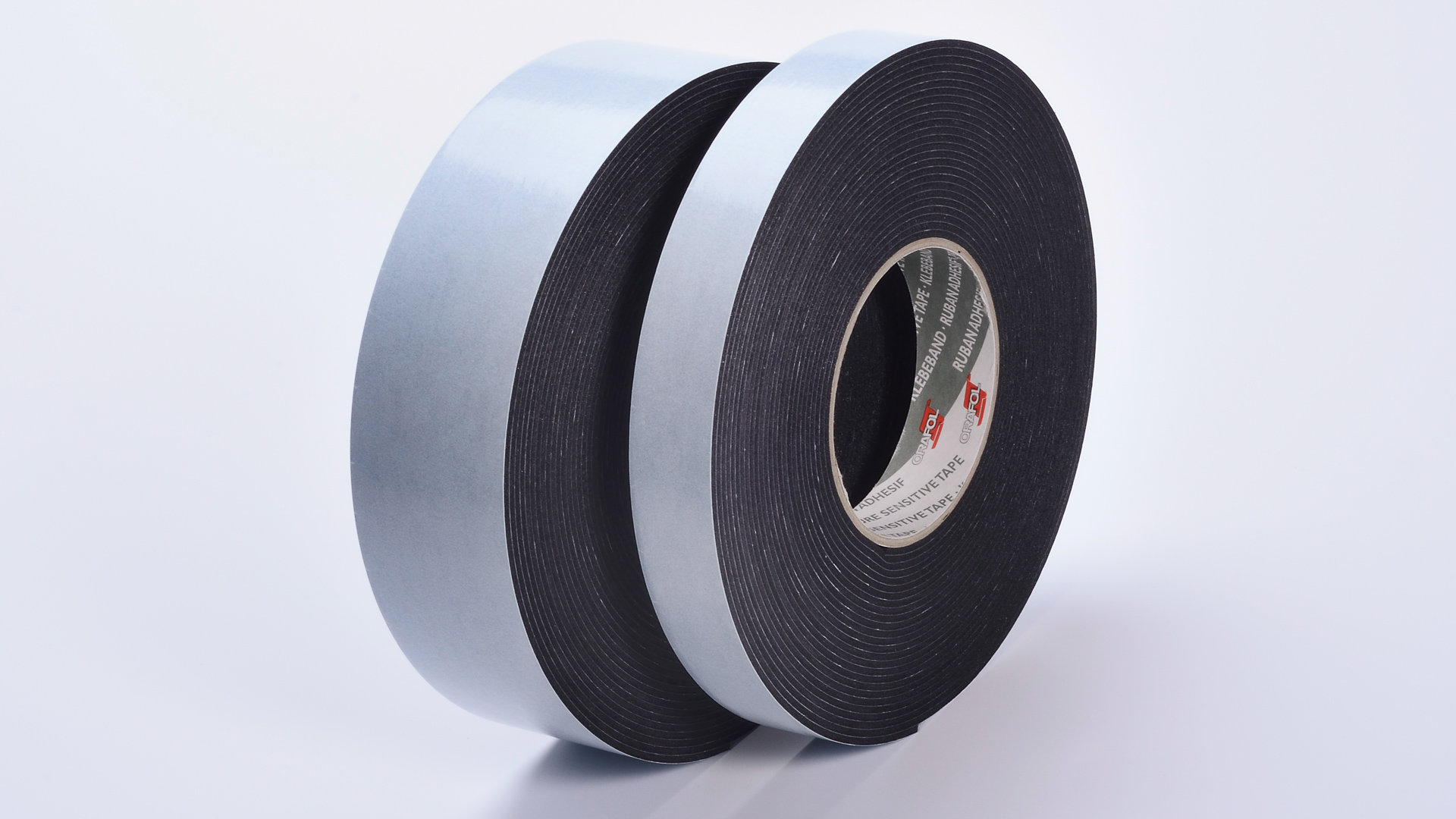

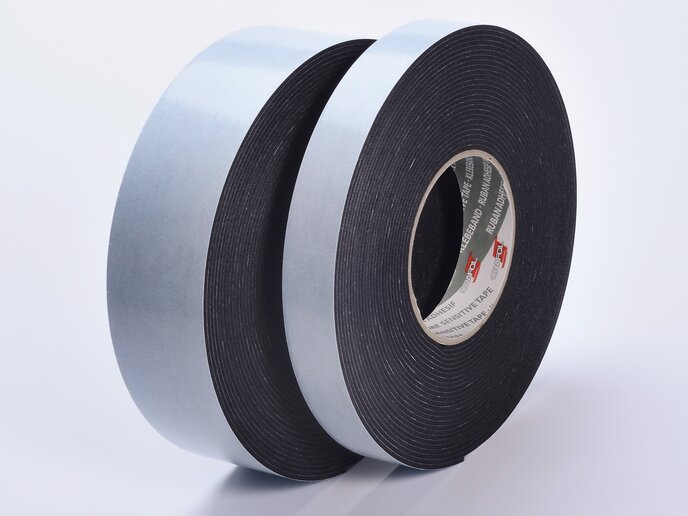

The double-sided adhesive tape consists of a black closed-cell polyethylene foam that is coated on both sides with an acrylate adhesive. The adhesive guarantees an excellent temperature resistance, high final strength and resistance against plasticisers, acids, alkalis as well as solvents. It is also compatible with different mirror coatings.
| Shelf Life | 2 Year(s) | |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 95 °C |
central European normal climate |
| Adhesive power | 16 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 16 N/25 mm | on stainless steel, after 20 min | Foam tear, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 16 N/25 mm | after 24 h, on stainless steel | Foam tear, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Maximum shear strength | 1000 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 72 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 18 °C |
|---|---|
| Substrate material /substrate | Aluminium, GRP outside skin, steel |
| Adhesive covered side | Pure acrylate | |
|---|---|---|
| Adhesive open side | Pure acrylate | |
| Carrier |
Colour carrier: Black Carrier: Polyethylene foam |
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 15 mm | ||
| 19 mm | ||
| 25 mm | ||
| 30 mm | ||
| 38 mm | ||
| 50 mm | ||
| 60 mm | ||
| 75 mm | ||
| 100 mm | ||
| Standard width | 1550 mm | |
| Standard length | 50 m |
PDF, 87.40kB, 1 Page
PDF, 39.04kB, 2 Pages
PDF, 88.60kB, 1 Page
PDF, 163.28kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
