Technical data sheet - English (EN)
PDF, 273.63kB, 2 Pages

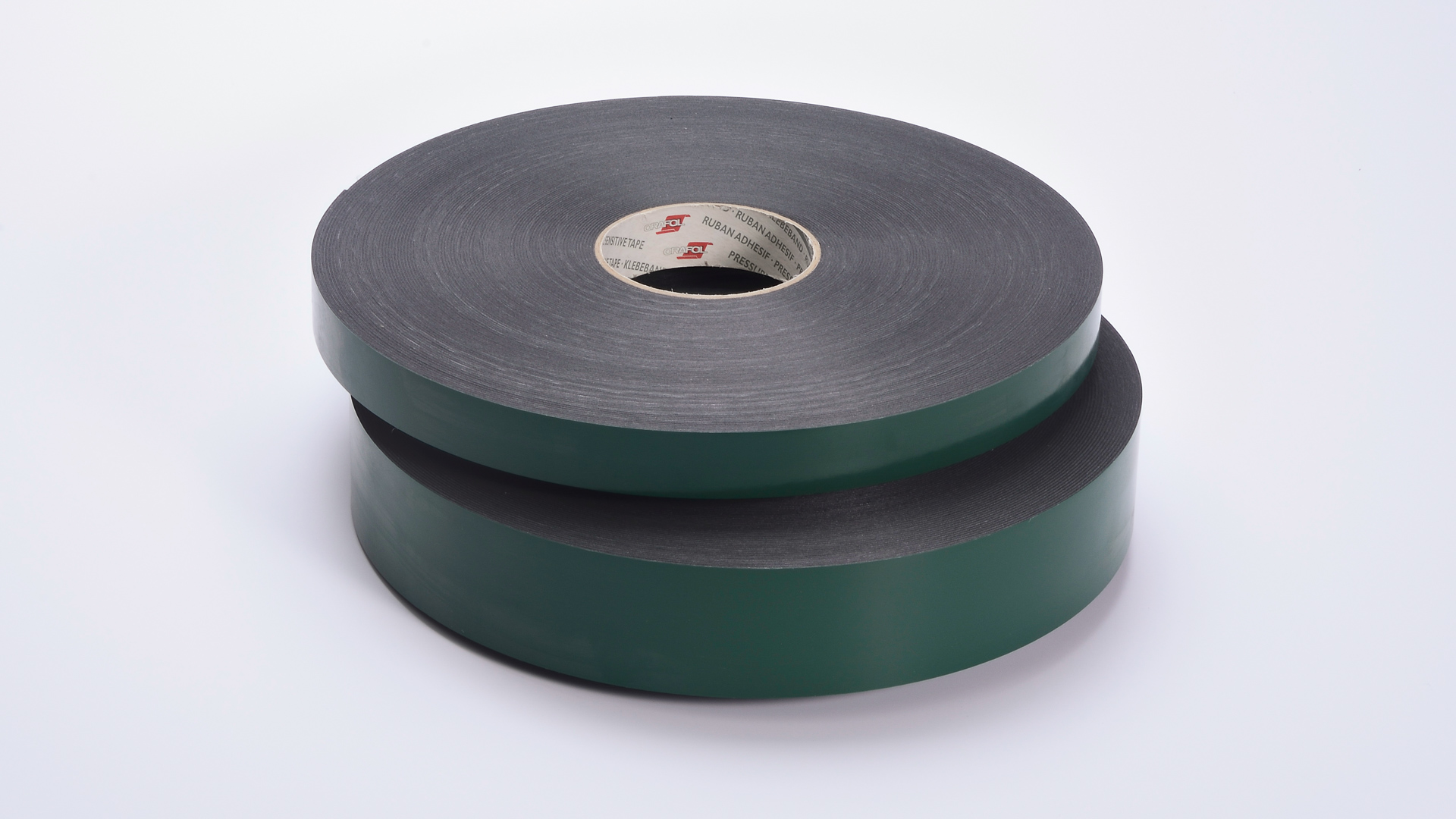

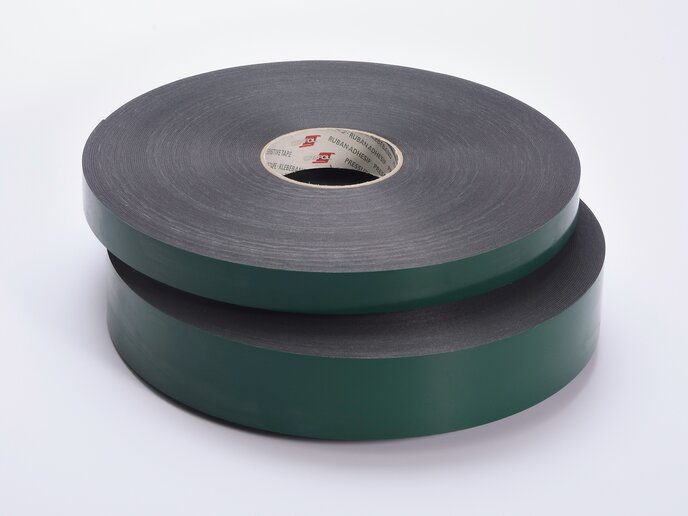

The double-sided adhesive tape consists of a black closed-cell polyethylene foam that is coated on both sides with an acrylate adhesive. The adhesive is characterised by good adhesion on critical substrate surfaces.
Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
---|---|---|
Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 100 °C |
Adhesive power | 18 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
---|---|---|
18 N/25 mm | on stainless steel, after 20 min | Foam splitting, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
18 N/25 mm | after 24 h, on stainless steel | Foam splitting, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
Initial adhesion (loop tack) | 32 N/25 mm | Average value, FINAT TM 9 |
Maximum shear strength | 300 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
6 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
Application temperature | Minimum temperature 18 °C |
---|
Liner |
Liner: LDPE film siliconised on both sides Colour cover material: Green |
|
---|---|---|
Adhesive covered side | Modified acrylate | |
Adhesive open side | Modified acrylate | |
Carrier |
Colour carrier: Black Carrier: Polyethylene foam |
Format | Roll, Cut | |
---|---|---|
Cutting roll width | 12 mm | |
15 mm | ||
19 mm | ||
25 mm | ||
30 mm | ||
38 mm | ||
50 mm | ||
60 mm | ||
75 mm | ||
100 mm | ||
Standard width | 1550 mm | |
Standard length | 50 m |
