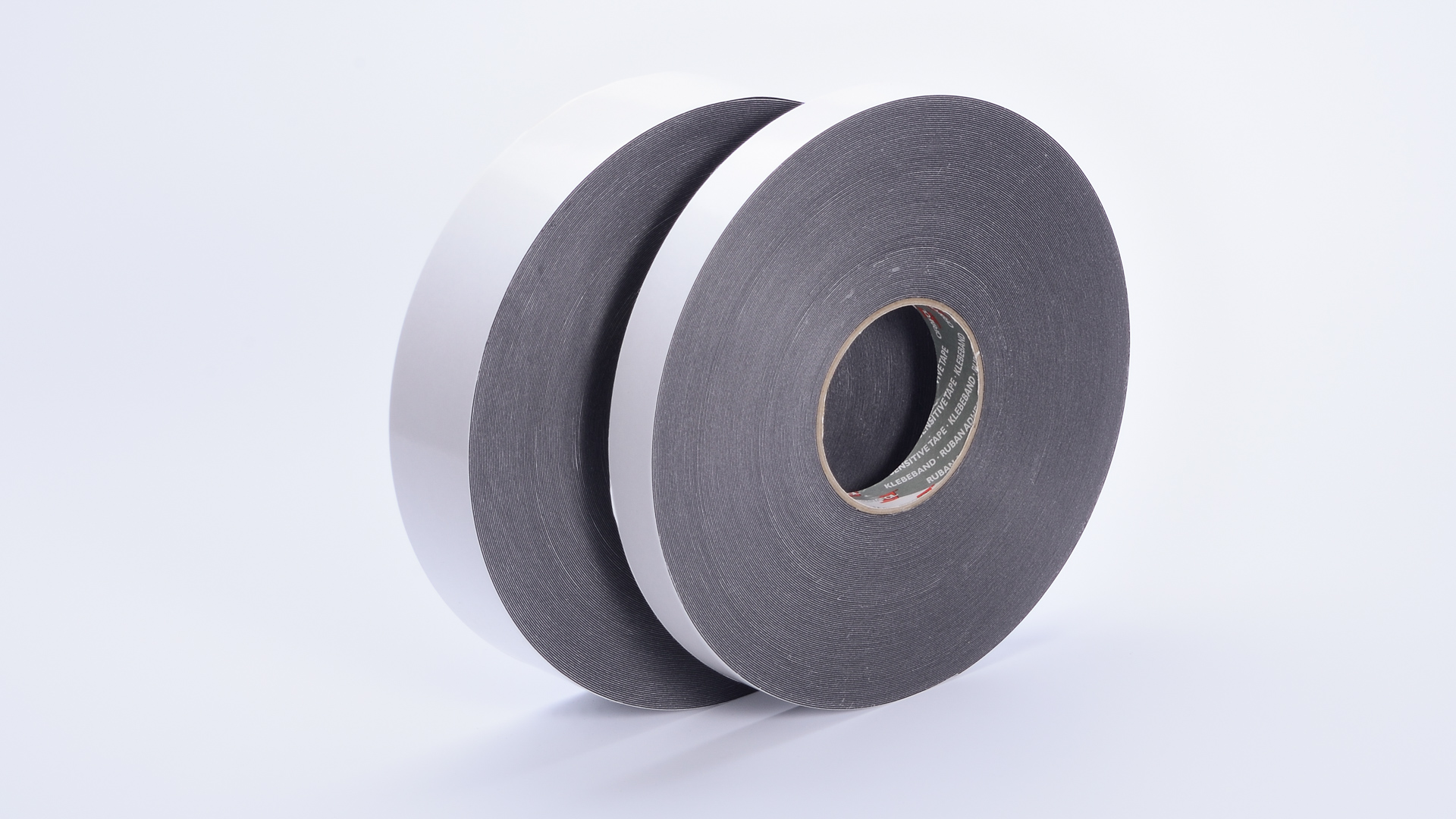

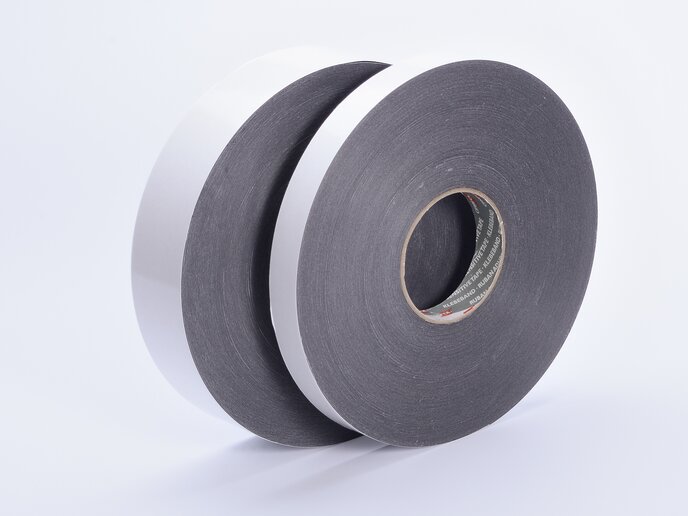

The double-sided adhesive tape consists of an anthracite-coloured, closed-cell polyolefin foam that is coated on both sides with an acrylate adhesive. The adhesive guarantees an excellent temperature resistance, high final strength and resistance against plasticisers, acids, alkalis as well as solvents.
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 94 °C |
1 h, central European normal climate |
| Adhesive power | 16 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 17 N/25 mm | on stainless steel, after 20 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 20 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Initial adhesion (loop tack) | 20 N/25 mm | Average value, FINAT TM 9 |
| Maximum shear strength | 1000 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 73 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| Application temperature | Minimum temperature 18 °C |
|---|
| Adhesive covered side | Pure acrylate | |
|---|---|---|
| Adhesive open side | Pure acrylate | |
| Carrier |
Colour carrier: Anthracite Carrier: Polyolefin foam |
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 15 mm | ||
| 19 mm | ||
| 25 mm | ||
| 30 mm | ||
| 38 mm | ||
| 50 mm | ||
| 60 mm | ||
| 75 mm | ||
| 100 mm | ||
| Standard width | 1250 mm | |
| Standard length | 50 m |
