Technical data sheet - English (EN)
PDF, 107.47kB, 1 Page

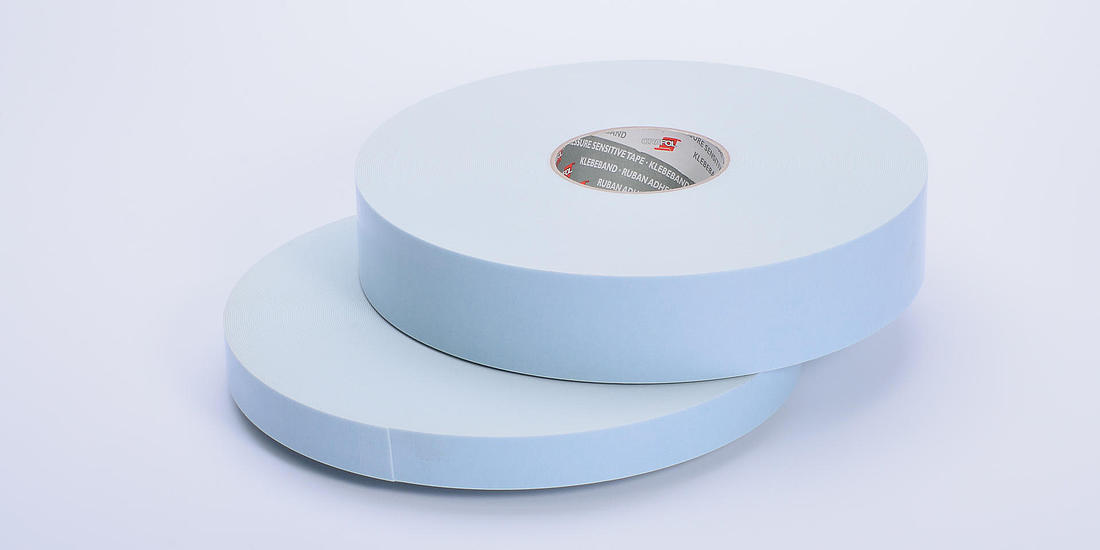

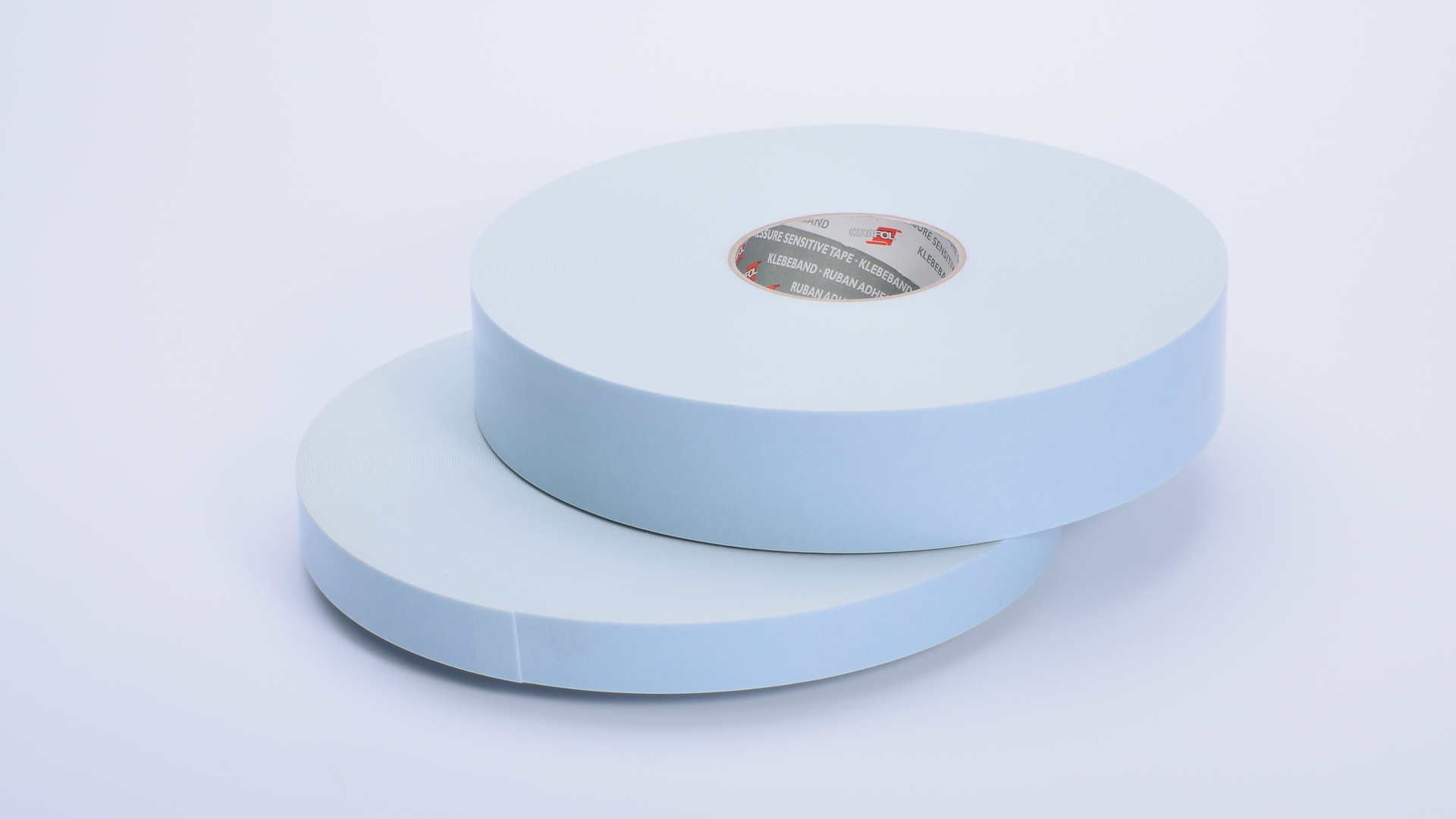

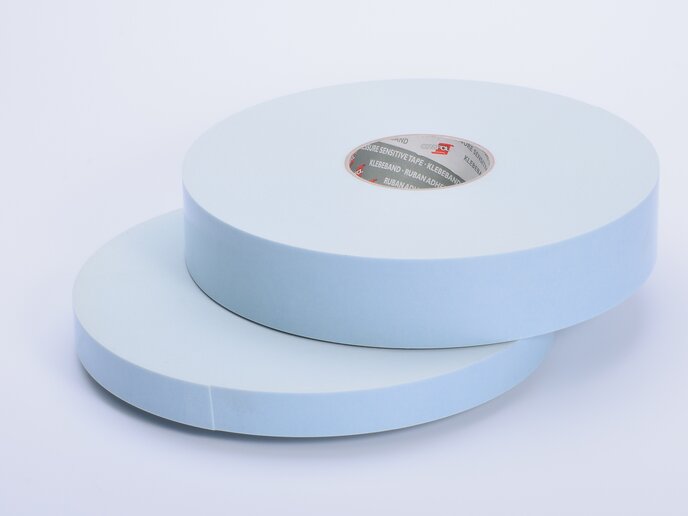

The double-sided adhesive tape consists of a white closed-cell polyethylene foam that is coated on the both sides with an acrylate adhesive. The adhesive is characterised by good adhesion on critical substrate surfaces.
Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
---|---|---|
UV resistance | Highly recommended | |
Water resistance | Highly recommended | |
Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 80 °C |
Adhesive power | 20 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
---|---|---|
20 N/25 mm | on stainless steel, after 20 min | Foam splitting, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
20 N/25 mm | after 24 h, on stainless steel | Foam splitting, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
Initial adhesion (loop tack) | 20 N/25 mm | Average value, FINAT TM 9 | Average value, FINAT TM 9 |
Maximum shear strength | 300 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
6 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
Application temperature | Minimum temperature 15 °C |
---|
Adhesive covered side | Modified acrylate | |
---|---|---|
Adhesive open side | Modified acrylate | |
Carrier |
Colour carrier: White Carrier: Polyethylene foam |
Format | Roll, Cut | |
---|---|---|
Cutting roll width | 12 mm | |
15 mm | ||
19 mm | ||
25 mm | ||
30 mm | ||
38 mm | ||
50 mm | ||
60 mm | ||
75 mm | ||
100 mm | ||
Standard width | 1550 mm | |
Standard length | 50 m |
PDF, 107.47kB, 1 Page
PDF, 39.04kB, 2 Pages
PDF, 88.60kB, 1 Page
PDF, 163.28kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
