ORALITE® 5650RA

Fleet Engineer Grade

Product Description

Fleet engineer grade reflective marking film and digital print media featuring superior glass bead reflective performance for emergency and commercial vehicle graphics. ORALITE® 5650RA is very bright and crisp from dusk to dawn, and also during poor weather conditions. The retro-reflective properties act as a safety mechanism when headlights and streetlights bounce off the film, alerting oncoming traffic and pedestrians to be aware. Experience bubble-free applications with ORAFOL’s RapidAir® adhesive technology. (ORALITE® 5650RA offers a slightly higher initial tack than ORALITE® 5600RA) Perfect for larger-format print & cut graphic applications.

Applications
  • Flat, or Moderate Curves – long-term reflective graphic applications
    • Plotter Cut Reflective Graphics
    • Printed Reflective Graphics
  • Automotive Commercial Fleet Graphic Applications
  • Transit & Railroad Train Car Graphic Applications

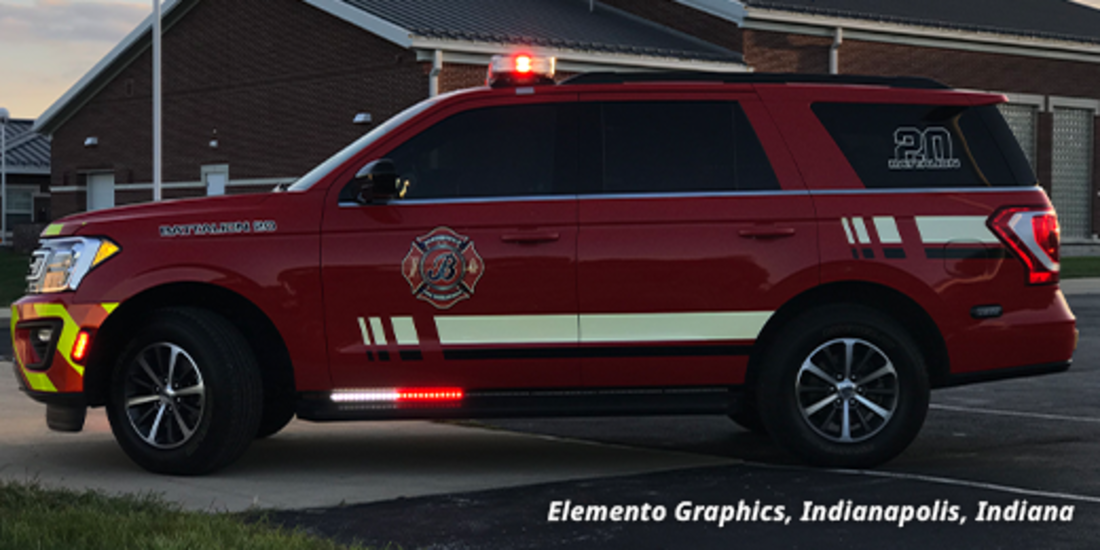

  • Emergency Vehicle & Apparatus Graphic Applications
    • Striping
    • Lettering
    • Badges

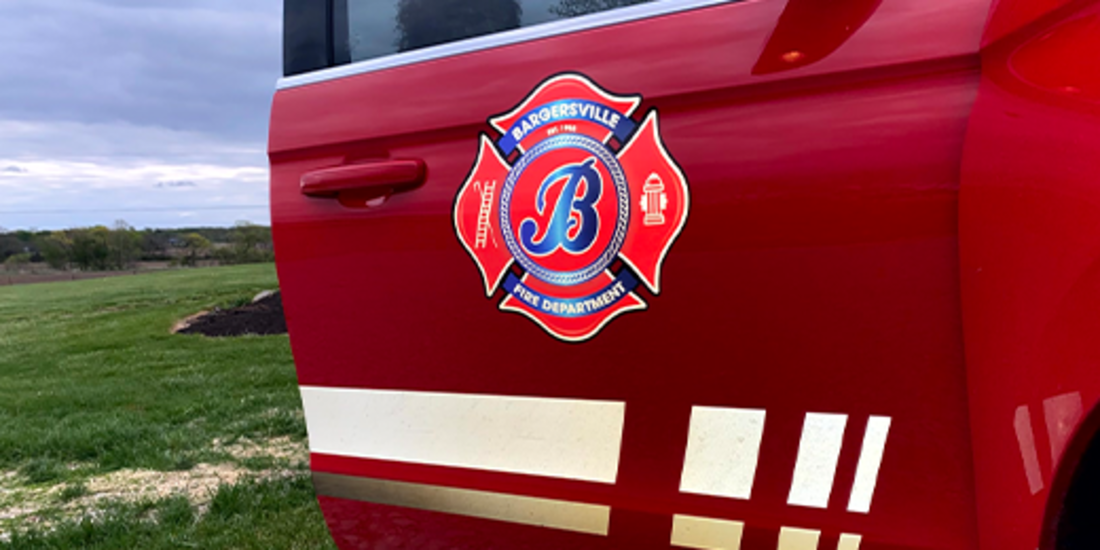

    • Maltese Cross
    • Star of Life
    • Battenburg Pattern
    • Etc.
  • Long-term reflective outdoor general signage
    • Parking lot Signage
    • Park and Recreational Signage
Application Method
  • Dry Application Only
Thickness
  • 5 mil (average)
Durability
  • Outdoor
    • Up to 6 years (printed + laminated)
    • Up to 7 years (unprinted)
Release Liner
  • 89# PE-coated silicone paper featuring advanced air release technology to facilitate quicker, easier application
Adhesive
  • Clear, solvent-based, permanent adhesive
    (removable with heat)
Number of Colors
  • Available in 10 colors with a gloss finish
Available Lengths
  • 150’ (50-yard)
  • 75' (25-yard) (white only)
  • 30’ (10-yard)
Available Widths
(in inches)
  • 15 (punched)
  • 24
  • 30
  • 48
  • 54 (white only)
  • 60 (white only)
Print Compatibility (white only)
  • Latex
  • Solvent
  • Eco-Solvent
  • UV Curable Thermal
  • UV-Gel
  • Screen Printing
Certifications
  • Meets ASTM D 4956 specifications for Type I, Class 1 retroreflective sheeting

Buy Here


Download Now

Official ORAFOL ICC Color Profiles


Resource Documents:
Digitally Printed Graphics
Care and Maintenance of Vehicle Graphics


Ficha técnica en español
ORALITE 5650RA

Sample Colors – ORALITE® 5650RA

  • 010
    sRGB0, 0, 0
    #010white
  • 213
    sRGB0, 0, 0
    #213lemon yellow
  • 020
    sRGB0, 0, 0
    #020yellow
  • 035
    sRGB0, 0, 0
    #035orange
  • 030
    sRGB0, 0, 0
    #030red
  • 364
    sRGB0, 0, 0
    #364ruby red
  • 060
    sRGB0, 0, 0
    #060green
  • 050
    sRGB0, 0, 0
    #050blue
  • 070
    sRGB0, 0, 0
    #070black
  • 091
    sRGB0, 0, 0
    #091gold

Colors may not be a 100% color match of actual material.
