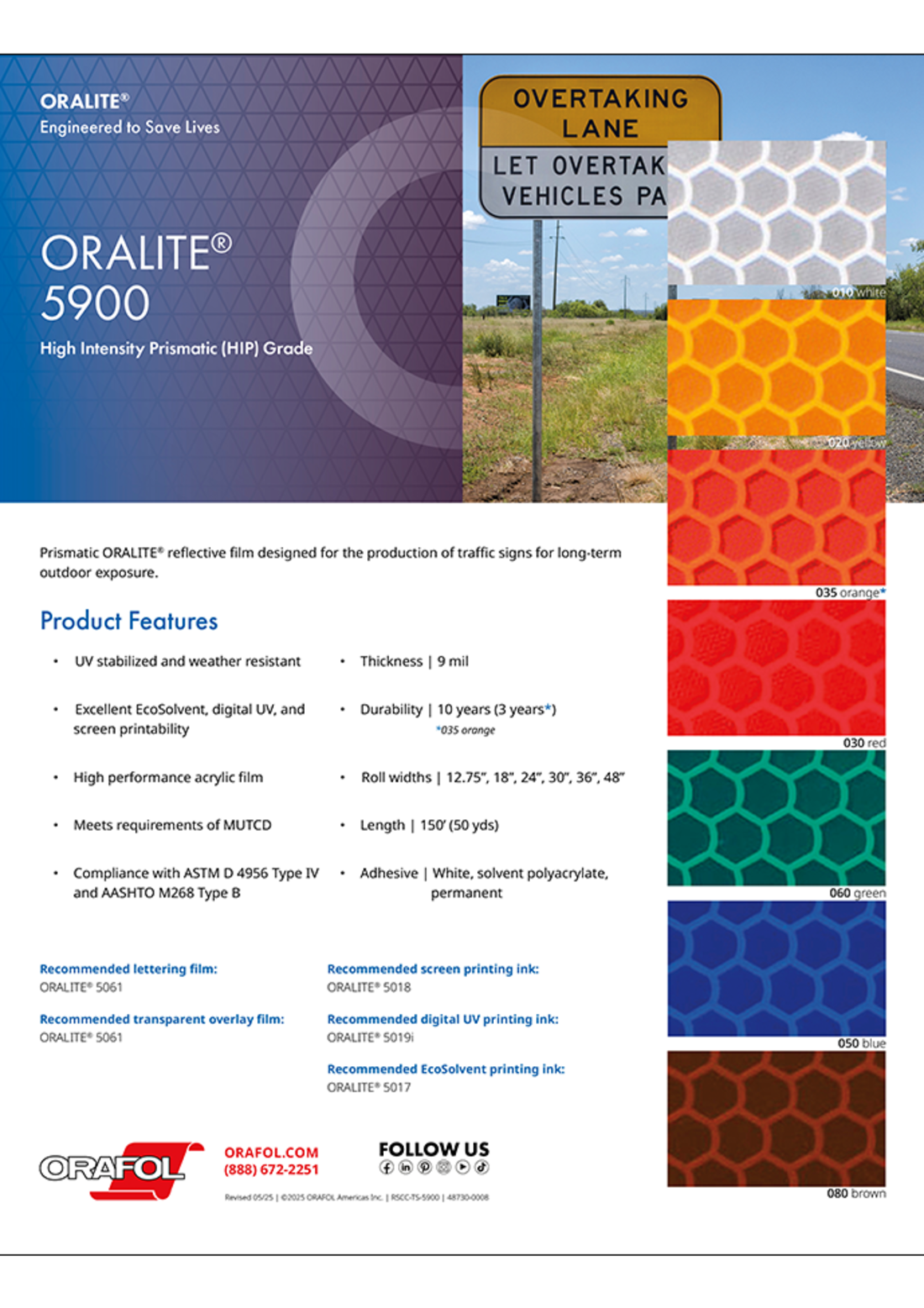

ORALITE® 5900

High Intensity Prismatic Grade

Product Description

Applications
  • Designed for the production of traffic signs for long-term outdoor exposure.
Thickness
  • 9 mil
Durability
  • 10 years
Release Liner
  • 3-mil, polypropylene film, silicone coated on one side
Adhesive
  • White, solvent polyacrylate, permanent adhesive
Number of Colors
  • 7
Available Lengths
  • 150’ (50-yard)
Available Widths
(in inches)
  • 12
  • 18
  • 24
  • 30
  • 36
  • 48
Print Compatibility
  • Screen printing
  • UV printing
Certifications
  • Meets requirements of MUTCD
  • Meets ASTM D 4956 specifications for Type IV, Class 1 retroreflective sheeting

Practical Information Flyers:
ORALITE® High Intensity Prismatic Grade

ORALITE® Traffic Sign Sheeting Guide

Data sheets and downloads

Sample Colors – ORALITE® 5900

  • 010
    sRGB201, 201, 205
    #010white
  • 020
    sRGB226, 142, 0
    #020yellow
  • 030
    sRGB215, 42, 5
    #030red
  • 035
    sRGB223, 62, 0
    #035orange
  • 050
    sRGB0, 59, 192
    #050blue
  • 060
    sRGB28, 114, 103
    #060green
  • 080
    sRGB87, 48, 2
    #080brown

Colors may not be a 100% color match of actual material.
